Evaporative Emissions - INGENIUM I6 3.0L Petrol (G2523929)

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN

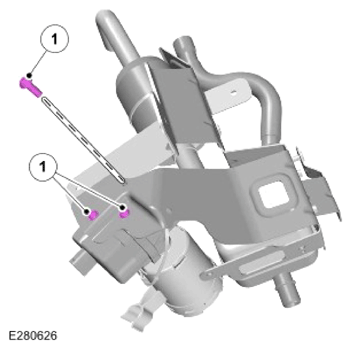

1	Diagnostic Module Tank Leakage (DMTL) pump assembly bracket bolt	7	-	62
2	DMTL  pump assembly bracket nut	7	-	62

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN

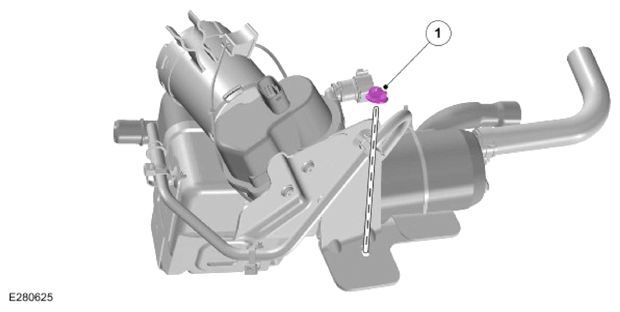

1	DMTL  pump assembly bracket nut	7	-	62

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN

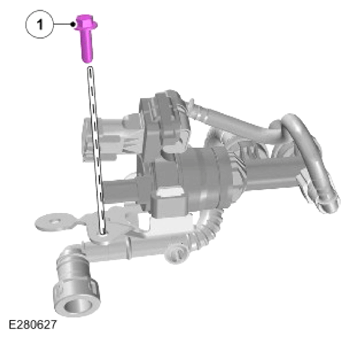

1	DMTL  pump assembly to bracket bolts	1.8	-	16

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN

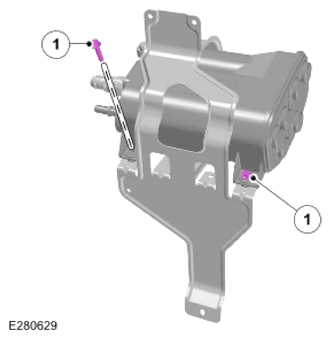

1	Canister Purge Valve (CPV) assembly bracket to engine bolt	7	-	62

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN

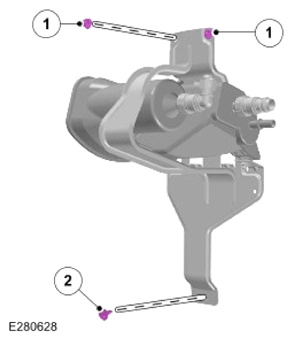

1	Evaporative emission assembly bracket nuts	7	-	62
2	Evaporative emission assembly bracket bolt	7	-	62

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN

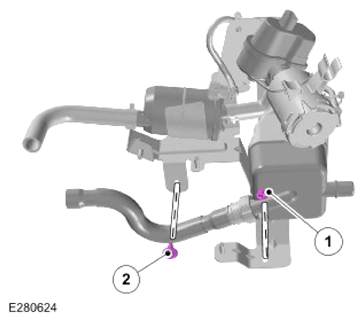

1	Evaporative emission to bracket bolts	7	-	62
