Accessory Drive - INGENIUM I6 3.0L Petrol (G2523743): Specifications

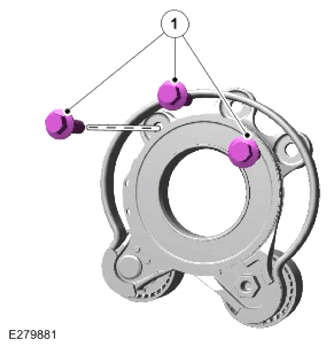

COMPONENT TORQUE LOCATION
G14511949Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
TORQUE SPECIFICATIONS

  DESCRIPTION NM LB-FT LB-IN
1 Accessory drive belt tensioner bolts 25 18 -
