Parking Brake And Actuation (G2523153)

COMPONENT TORQUE LOCATION

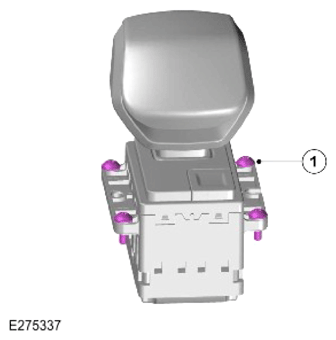

G14497371Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

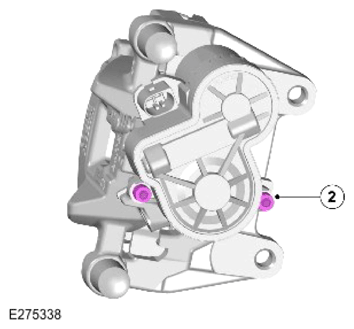

G14497372Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
TORQUE SPECIFICATIONS

DESCRIPTION NM LB-FT LB-IN
Electric park brake switch screws 2 - 18
Electric park brake actuator bolts 8 - 71
