Integrated Electric Park Brake Switch (G2523160): Removal

CAUTION:

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains illustrations for left hand drive vehicles, right hand drive vehicles are similar.

Remove the floor console upper trim.
Refer to: FLOOR CONSOLE UPPER TRIM
Disconnect the 12 V system.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

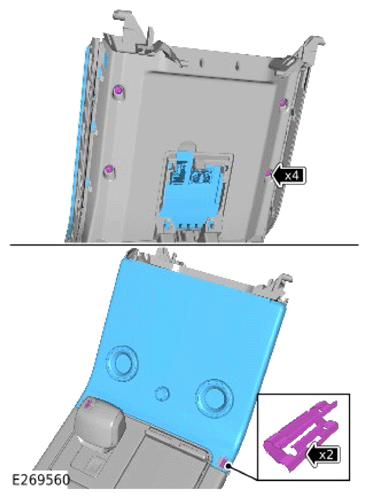

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 4 screws.
- Release the 2 clips.
- Remove the Interactive Control Display Module (ICDM).

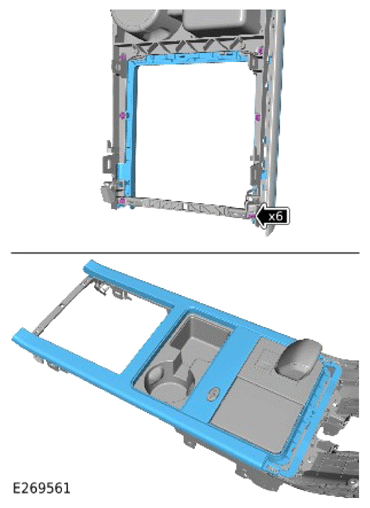

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 6 screws.
- Remove the floor console surrounding trim.

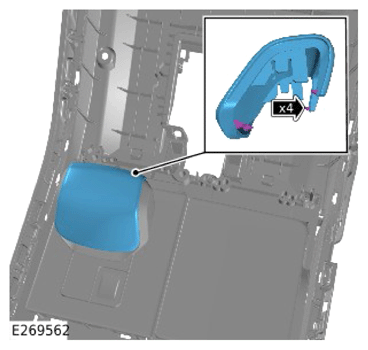

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the 4 clips.
- Remove the transmission control knob trim.

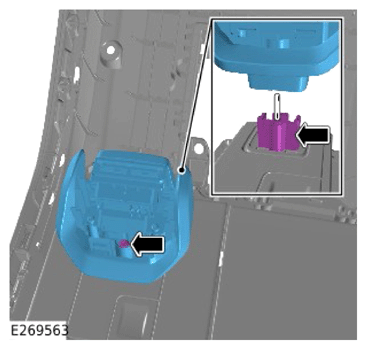

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the screw.
- Remove the transmission control knob.

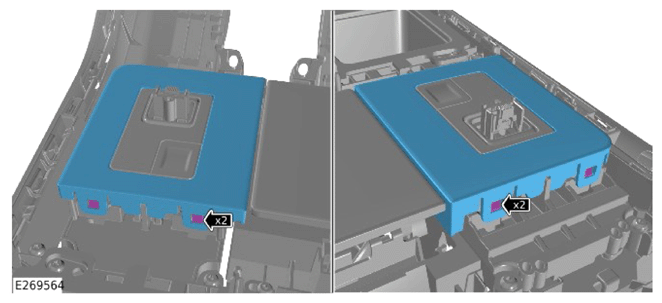

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the 4 clips.
- Remove the integrated Electric Park Brake (EPB) switch trim.

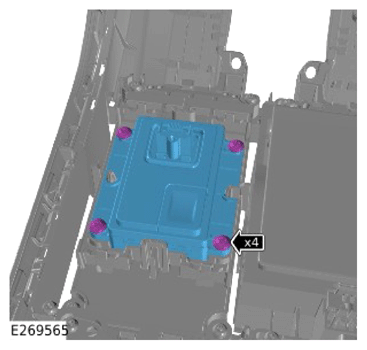

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 4 screws.
- Remove the integrated EPB switch.
