Warning Indicators

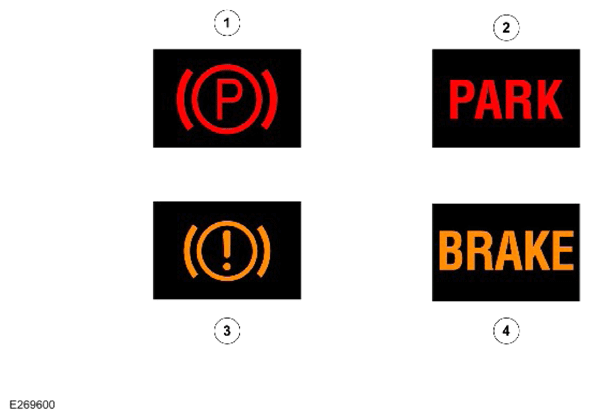

| ITEM | DESCRIPTION |
|---|---|
| 1 | EPB warning indicator - Rest of World (ROW) |
| 2 | EPB warning indicator - North American Specification (NAS) |
| 3 | Brake warning indicator - NAS |
| 4 | Brake warning indicator - ROW |
The Integrated Power Brake control module requests the display of the warning indicators and messages in the IPC . The Integrated Power Brake control module sends the activated signal to the Body Control Module (BCM)/Gateway Module A (GWM). Then the activated signal is sent to the IPC through the HS CAN Human Machine Interface (HMI) systems bus. The IPC activates the EPB indicator lamp.
When the EPB is applied in the static mode, the red EPB warning indicator is permanently illuminated:
- In Power Mode 6 (ignition ON)
- For 30 seconds in Power Mode 0 (Vehicle locked and armed)
- For 30 seconds in Power Mode 4 (Accessory (vehicle unlocked and Smart Key present))
If a fault is detected and the EPB is unable to apply, the red EPB warning indicator flashes. If any other EPB fault is detected, the amber brake warning indicator is illuminated. All fault indications are accompanied by a warning chime.
A message is also be displayed in the information and message center of the IPC .
For additional information, Refer to: INSTRUMENT CLUSTER
