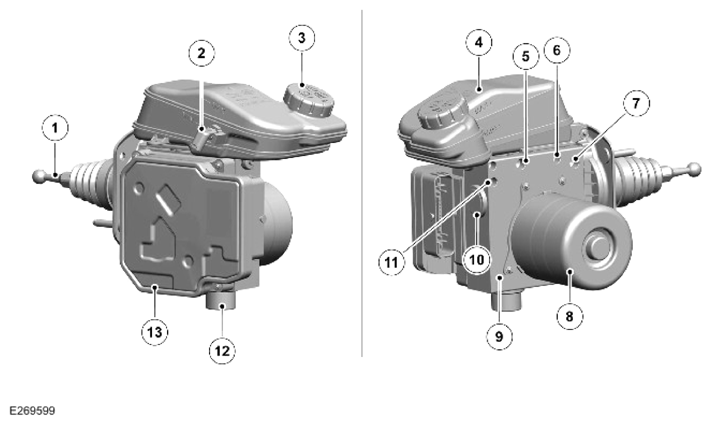

Integrated Power Brake
| ITEM | DESCRIPTION |
|---|---|
| 1 | Input rod and pedal interface |
| 2 | Electrical connector - Brake fluid level sensor |
| 3 | Brake fluid reservoir cap |
| 4 | Brake fluid reservoir |
| 5 | Front left brake outlet port |
| 6 | Front right brake outlet port |
| 7 | Rear left brake outlet port |
| 8 | Electrical motor |
| 9 | Hydraulic Control Unit (HCU) |
| 10 | Internal tandem master cylinder |
| 11 | Rear right brake outlet port |
| 12 | Pedal feel simulator |
| 13 | Integrated Power Brake control module |
The Integrated Power Brake control module controls the 2 EPB actuators separately. The operation of the EPB is initiated by the Park button and software within the Integrated Power Brake control module.
The EPB has the following operating modes:
- Static apply/release
- Drive away release
- Automatic transmission apply/release
- Ignition OFF apply
- High temperature reclamp
- Roller test bench detection
- Driver exit apply
- Dynamic apply.
For additional information, Refer to: INTEGRATED POWER BRAKE SYSTEM
