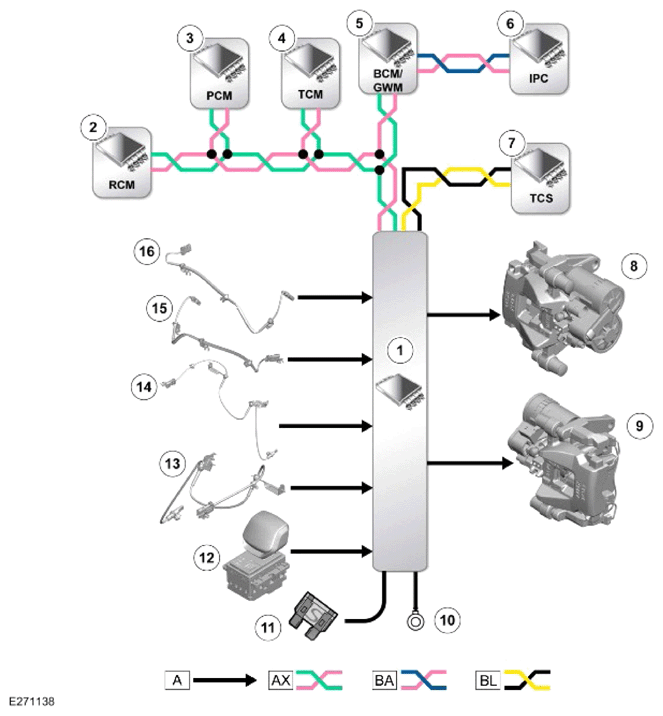

Control Diagram - 1 Of 1
A = HARDWIRED: AX = FLEXRAY: BA = HS CAN HMI SYSTEMS BUS: BL = HS CAN UNDERBODY SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Integrated Power Brake control module |
| 2 | RCM |
| 3 | PCM |
| 4 | Transmission Control Module (TCM) |
| 5 | BCM /GWM |
| 6 | IPC |
| 7 | GWM |
| 8 | Actuator - Left EPB |
| 9 | Actuator - Right EPB |
| 10 | Ground |
| 11 | Power supply |
| 12 | Park button - Integrated in the GSM |
| 13 | Wheel speed sensor - Front left |
| 14 | Wheel speed sensor - Front right |
| 15 | Wheel speed sensor - Rear left |
| 16 | Wheel speed sensor - Rear right |
