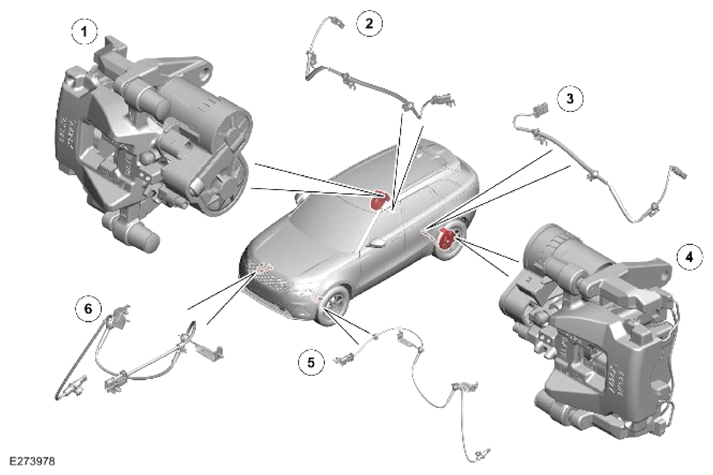

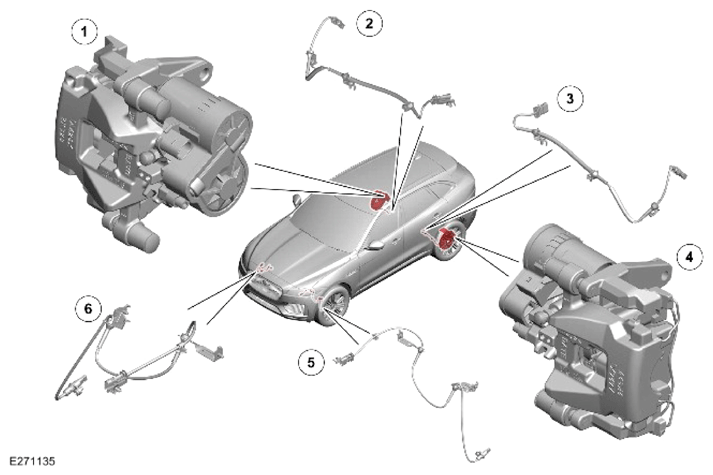

Component Location - 1 Of 2
NOTE:
Right Hand Drive (RHD) vehicle is shown. The Left Hand Drive (LHD) vehicle is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Actuator - Right Electric Park Brake (EPB) |
| 2 | Wheel speed sensor - Rear right |
| 3 | Wheel speed sensor - Rear left |
| 4 | Actuator - Left EPB |
| 5 | Wheel speed sensor - Front left |
| 6 | Wheel speed sensor - Front right |
