Rear Disc Brake (G2523152)

COMPONENT TORQUE LOCATION

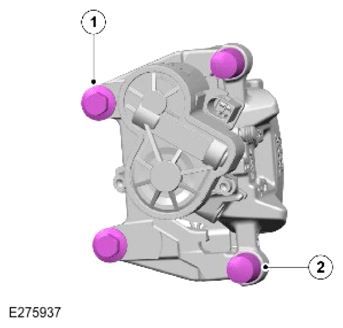

G14497324Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

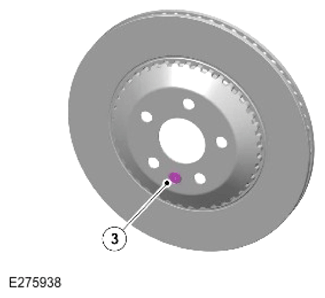

G14497325Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
G14497326Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
TORQUE SPECIFICATIONS

  DESCRIPTION NM LB-FT LB-IN
1 Brake caliper carrier bolts 110 81 -
2 Brake caliper slide pin bolts 28 21 -
3 Brake disc bolt 35 26 -
4 Brake hose assembly banjo bolt 32 24 -
