Brake Hose (G2792004): Removal

WARNING: Be prepared to collect escaping fluid.

CAUTION:

Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
Brake fluid will damage paint finished surfaces. If spilled, immediately remove the fluid and clean the area with water.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

- Use the Jaguar Land Rover (JLR) approved diagnostic equipment to activate the integrated power brake assembly mode.
  Refer to: INTEGRATED POWER BRAKE ASSEMBLY MODE

  General Equipment: Jaguar Land Rover approved diagnostic equipment
- Set the Electric Park Brake (EPB) to the maintenance position.
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Remove the rear wheel arch liner.
Refer to: REAR WHEEL ARCH LINER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

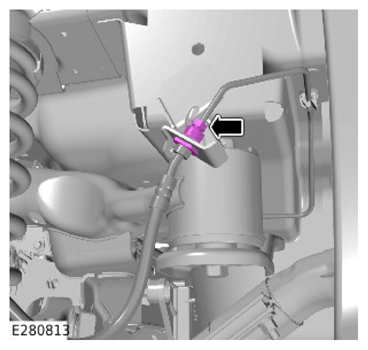

Disconnect the brake hose union.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

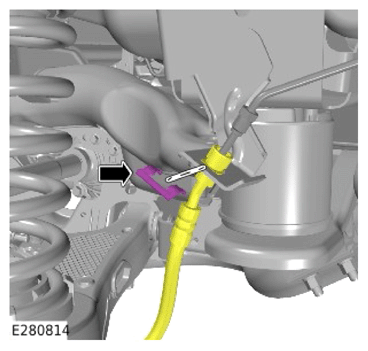

- Remove the brake hose clip.
- Release the brake hose from the body bracket.
CAUTION: Make sure that the 2 sealing washers are removed and discarded.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

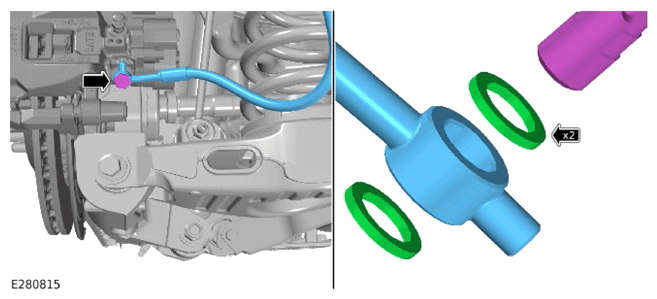

- Remove the bolt.
- Disconnect the brake hose from the brake caliper.
- Remove and discard the brake hose and the 2 sealing washers.
