Brake Disc - Vehicles With: 324 Mm Brake Disc (G2782930): Removal

WARNING: If new brake discs are installed, new brake pads must be installed as well.

CAUTION: Brake discs must be renewed in pairs.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains illustrations for right side components, left side components are similar.

- Use the Jaguar Land Rover (JLR) approved diagnostic equipment to activate the Integrated Power Brake assembly mode.
  Refer to: INTEGRATED POWER BRAKE ASSEMBLY MODE
- Use the JLR approved diagnostic equipment to set the Electric Park Brake (EPB) to the maintenance position.
  General Equipment: Jaguar Land Rover approved diagnostic equipment
WARNING: Take extra care that the brake pedal is not pressed during the replacement procedure. Failure to follow this instruction might result in personal injury.

NOTE: This step is only required if the JLR diagnostic equipment is not available.

Set the EPB to the maintenance position.

Refer to: ELECTRIC PARK BRAKE SERVICE MODE ACTIVATION AND DEACTIVATION
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Remove the rear wheel and tire.
Refer to: WHEEL AND TIRE
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

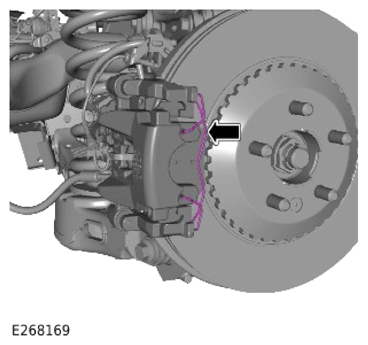

Remove the brake caliper anti-rattle spring.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

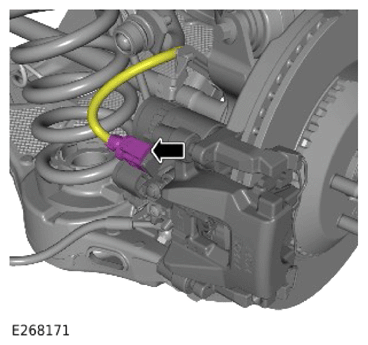

Disconnect the electrical connector.
NOTE: The brake pad wear sensor is only installed on the right side brake caliper.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

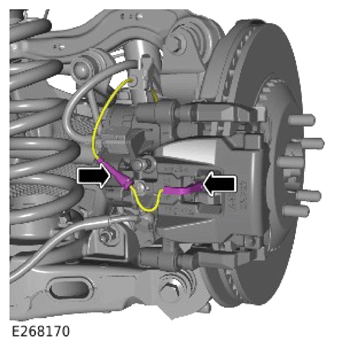

- Release the brake pad wear sensor.
- Release the brake pad wear sensor grommet and position the component to one side.
NOTE: Make sure that the brake hose does not support the full weight of the brake caliper assembly.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove and discard the 2 bolts.
- Reposition the brake caliper to get access to the brake disc.
- Use a suitable cable tie to support the brake caliper.
  General Equipment: Cable ties
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

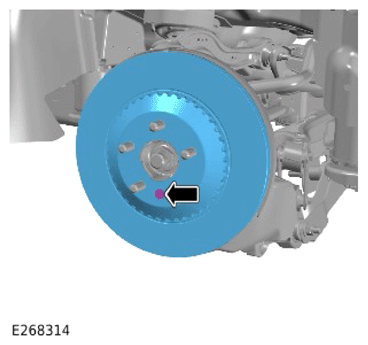

- Remove the bolt.
- Remove the brake disc.
