Brake Disc - Vehicles With: 324 Mm Brake Disc (G2782930): Installation

  1. WARNING: Do not use compressed air to clean brake components. Dust from friction materials can be harmful if inhaled.

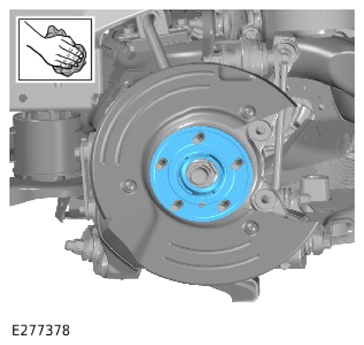

    G14497361Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Use brake cleaner fluid to clean the wheel hub mating face.

    Material: Brake Cleaner

  2. CAUTION: Examine the brake disc shield. Replace if damaged.

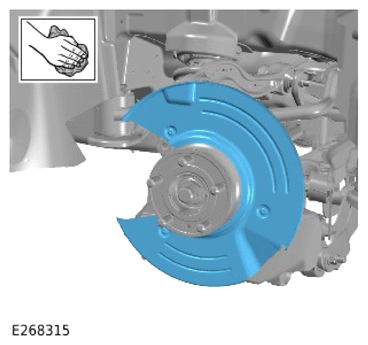

    G14497362Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Use brake cleaner fluid to clean the brake disc shield.

    Material: Brake Cleaner

  3. NOTE: Make sure that the mating faces are clean and free of foreign material.

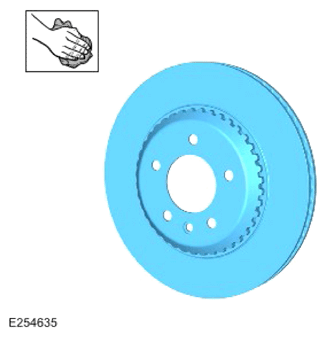

    G14497363Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Use brake cleaner fluid to clean the brake disc.

    Material: Brake Cleaner

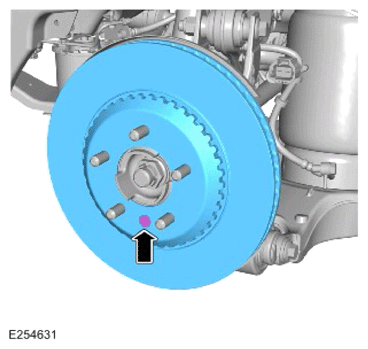

  4. G14497364Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the brake disc.
    • Install and tighten a new bolt.

      Renew Part: Brake disc bolt Quantity: 1 .

      Torque  : 10 Nm

  5. CAUTION: Make sure that the brake hose is not twisted and is correctly located.

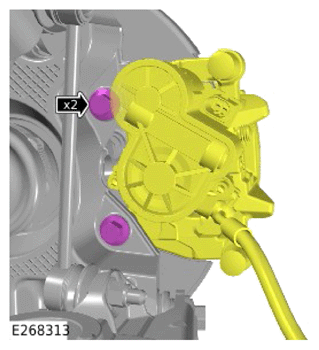

    G14497359Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Position the brake caliper in the correct location.
    • Install and tighten the new 2 bolts.

      Renew Part: Brake caliper carrier bolt(s) Quantity: 2 .

      Torque

      Stage 1: 110 Nm

      Stage 2: 120°

  6. NOTE: The brake pad wear sensor is only installed on the right side brake caliper.
    • Install the brake pad wear sensor to the brake pad.
    • Install the brake pad wear sensor grommet to the bracket.
  7. Connect the electrical connector to EPB  actuator.
  8. Install the brake caliper anti-rattle spring.
  9. Install the rear wheel and tire.

    Refer to: WHEEL AND TIRE

  10. CAUTION: Failure to follow this instruction may lead to brake warning lamps and Diagnostic Trouble Code(s) (DTC) being set.
    1. NOTE: Although the brake pedal might feel firm make sure to hold the pedal through the 10 second period.

      If the Integrated Power Brake unit - 'Assembly Mode' has not been activated, press and hold the brake pedal in a single apply for 10 seconds.

    2. If the brake pedal felt soft and fell to the floor proceed to substep  4.
    3. If the brake pedal felt firm proceed to substep  5.
    4. NOTE: Make sure to repeatedly press the brake pedal until a firm brake pedal feel is reached.

      If the Integrated Power Brake unit - 'Assembly Mode' has been activated, press the brake pedal several times until a firm brake pedal feel is reached.

    5. Check the fluid level in the brake fluid reservoir and top-up with brake fluid if necessary.

      Refer to: SPECIFICATIONS

  11. NOTE: This step is only required if the JLR diagnostic equipment is not available.

    Disable the EPB  maintenance mode.

    Refer to: ELECTRIC PARK BRAKE SERVICE MODE ACTIVATION AND DEACTIVATION

    • Use the JLR  approved diagnostic equipment to Calibrate the EPB  .

      General Equipment: Jaguar Land Rover approved diagnostic equipment

    • Use the JLR  approved diagnostic equipment to deactivate the Integrated Power Brake assembly mode.

      Refer to: INTEGRATED POWER BRAKE ASSEMBLY MODE
