Brake Caliper - Vehicles With: 324 Mm Brake Disc (G2782927): Removal

WARNING: Take extra care that the brake pedal is not pressed during the replacement procedure. Failure to follow this instruction might result in personal injury.

CAUTION:

Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
If brake fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains illustrations for right side components, left side components are similar.

- Use the Jaguar Land Rover (JLR) approved diagnostic equipment to set the Integrated Power Brake to the assembly mode.
  Refer to: INTEGRATED POWER BRAKE ASSEMBLY MODE
- Use the JLR approved diagnostic equipment to set the Electric Park Brake (EPB) to the maintenance position.
  General Equipment: Jaguar Land Rover approved diagnostic equipment
NOTE: This step is only required if the JLR diagnostic equipment is not available.

Set the EPB to the maintenance position.

Refer to: ELECTRIC PARK BRAKE SERVICE MODE ACTIVATION AND DEACTIVATION
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Remove the rear wheel and tire.
Refer to: WHEEL AND TIRE
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the brake caliper anti-rattle spring.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the electrical connector.
CAUTION: Care must be taken for the brake pad wear sensor is easily damaged.

NOTE: The brake pad wear sensor is only installed on the right side brake caliper.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the brake pad wear sensor from the brake pad.
- Release the grommet from the bracket.
- Reposition the wiring harness away from the brake caliper.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

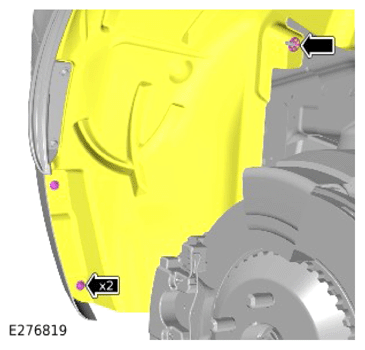

- Remove the 2 screws.
- Remove and discard the push on steel clip.
- Reposition the rear wheel arch liner to get access to the brake hose.
CAUTION: Fluid loss is unavoidable, use absorbent cloth or a container to collect the fluid.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove and discard the brake hose bolt.
- Remove and discard the 2 seals.
- Disconnect the brake hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the brake hose clip.
- Release the brake pipe nut.
- Remove and discard the brake hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 brake caliper dust covers.
- Remove the 2 brake caliper slide pins.
- Remove the brake caliper.
NOTE: Only complete the following step(s) if a new component is to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove and discard the 2 bolts.
- Remove the EPB actuator from the brake caliper.
- Remove and discard the O-ring seal.
