Brake Caliper - Vehicles With: 324 Mm Brake Disc (G2782927): Installation

WARNING: If the brake caliper chamber dust boot is damaged, a new brake caliper must be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Examine the brake caliper dust boots for damage.
NOTE: Only complete the following step(s) if a new component is to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install a new O-ring seal.
  Renew Part: Electric park brake actuator fitting kit Quantity: 1 .
- Install the EPB actuator to the brake caliper.
- Install and tighten the 2 new bolts.
  Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

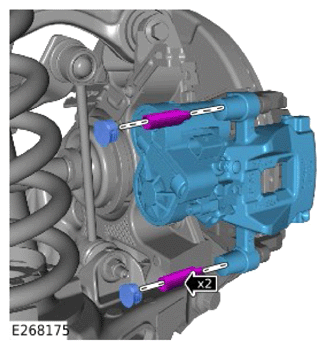

- Install the brake caliper.
- Install and tighten the 2 brake caliper slide pins.
  Torque : 28 Nm
- Install the 2 brake caliper dust covers.
CAUTION: Make sure that a new flexible brake hose assembly is to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

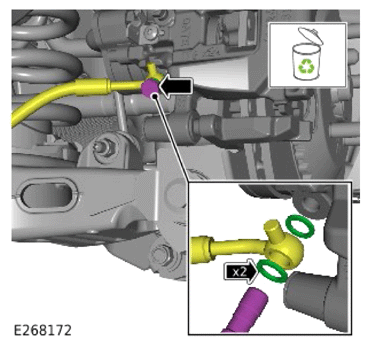

- Install the 2 new seals to the new brake hose bolt as illustrated.
  Renew Part: Brake caliper hose Quantity: 1 .
- Connect the new brake hose to the brake caliper and tighten the new brake hose bolt.
  Torque : 35 Nm
CAUTION: Make sure that the brake hose is not twisted and is correctly located.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

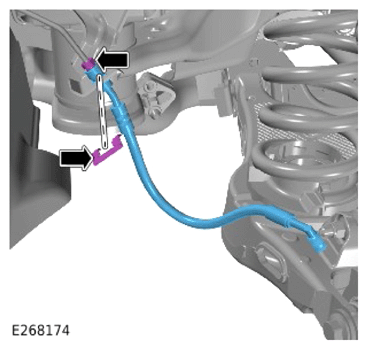

- Install the brake hose to the bracket.
- Connect the brake pipe and tighten the nut.
  Torque : 15 Nm
- Install the brake hose clip.
- Reposition the rear wheel arch liner in the correct location.
- Install the new push on steel clip.
  Renew Part: Clip - push on steel Quantity: 1 .
- Install and tighten the 2 screws.
  Torque : 2 Nm
NOTE: The brake pad wear sensor is only installed on the right side brake caliper.
- Install the brake pad sensor to the brake pad.
- Reposition the wiring harness in the correct location.
- Install the grommet to the bracket.
Install the brake caliper anti-rattle spring.
Bleed the brake system.
Refer to: BRAKE SYSTEM BLEEDING
Install the wheel and tire.
Refer to: WHEEL AND TIRE
NOTE: This step is only required if the JLR diagnostic equipment is not available.

Disable the EPB maintenance mode.

Refer to: ELECTRIC PARK BRAKE SERVICE MODE ACTIVATION AND DEACTIVATION
- Use the JLR approved diagnostic equipment to calibrate the EPB .
  General Equipment: Jaguar Land Rover approved diagnostic equipment
- Use the JLR approved diagnostic equipment to deactivate the Integrated Power Brake assembly mode.
  Refer to: INTEGRATED POWER BRAKE ASSEMBLY MODE
Use the JLR approved diagnostic equipment to complete the Leakage and Air Monitoring test to the Integrated Power Brake.
General Equipment: Jaguar Land Rover approved diagnostic equipment
