Component Location

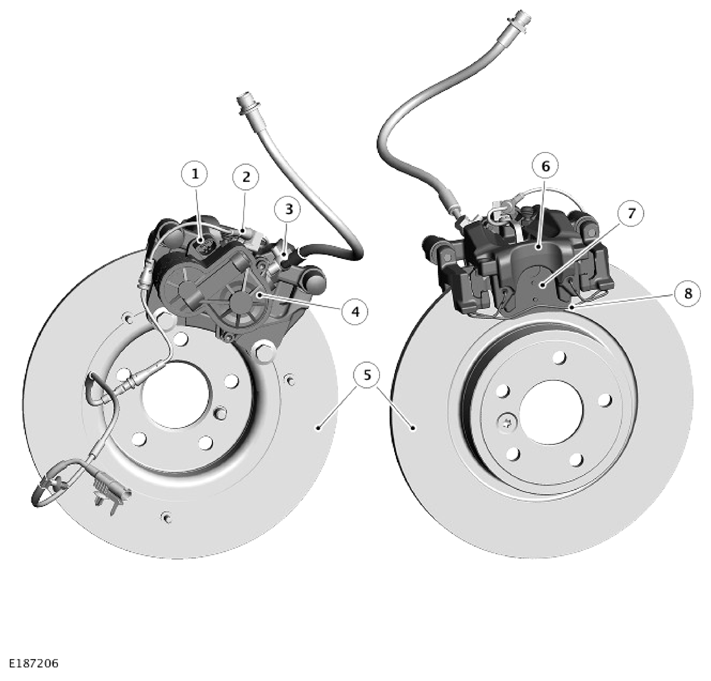

G14279908Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Electrical connection
2 Brake Pad Wear indicator
3 Hydraulic hose and connection
4 Electric park brake actuator
5 Brake disc
6 Brake calliper
7 Brake pad
8 Anti-rattle spring
