Instrument Panel And Console (G2523307): Specifications

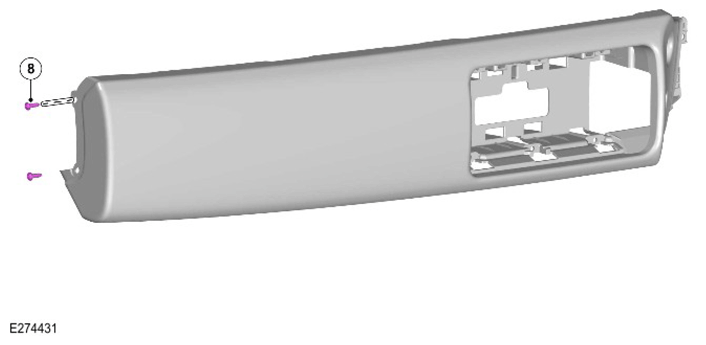

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB/FT	LB/IN

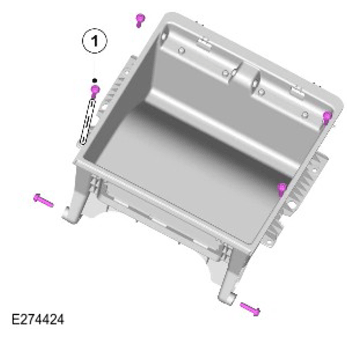

1	Floor console stowage compartment bolts	2	-	18

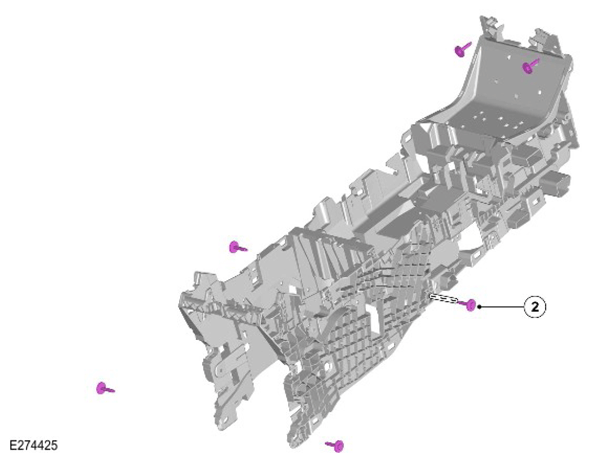

2	Floor console bolts	10	7	-

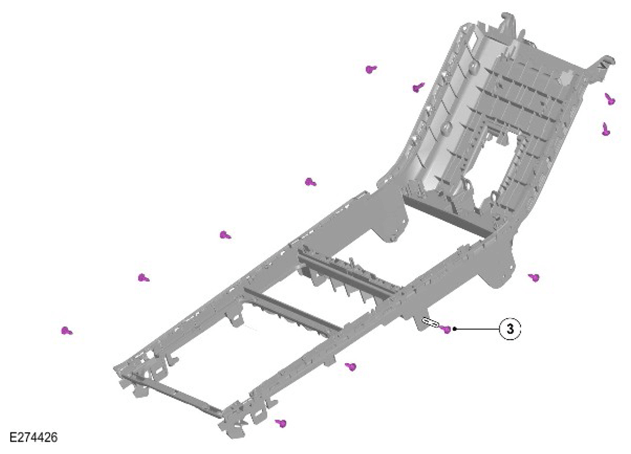

3	Floor console upper surrounding trim screws	2	-	18

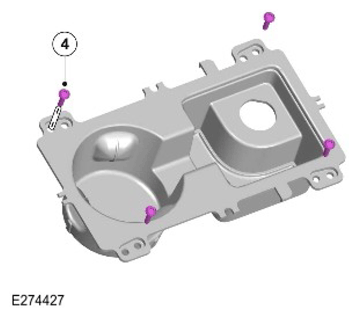

4	Floor console cup holder screws	2	-	18

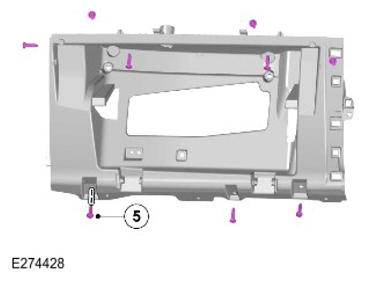

5	Glovebox bolts	9	-	80

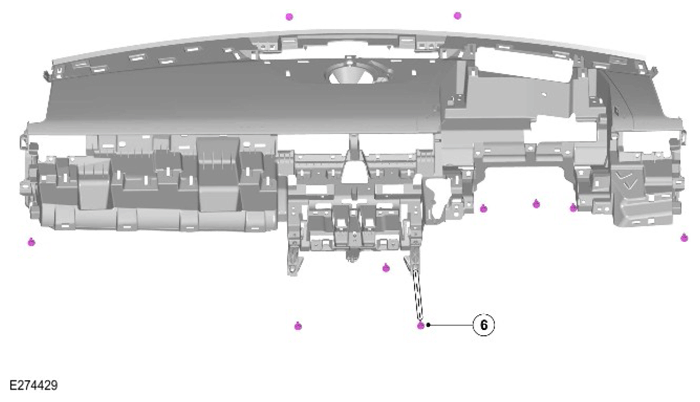

6	Instrument panel bolts	9	-	80

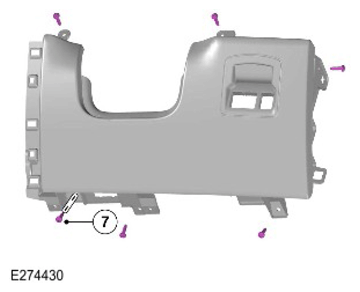

7	Instrument panel lower trim panel screws	5	-	44
8	Instrument panel passenger moulding screws	5	-	44

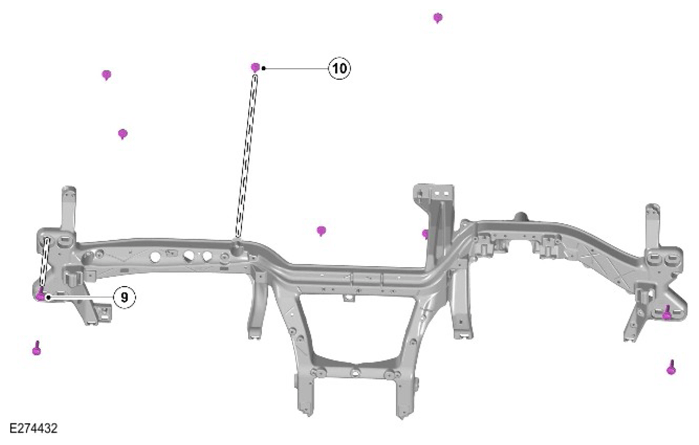

9	In-vehicle cross beam to chassis bolts	20	15	-
10	In-vehicle cross beam to climate control assembly bolts	10	7	-
