Instrument Cluster Lens (G2131327): Removal

  1. Remove the Instrument Cluster (IC).

    Refer to: INSTRUMENT CLUSTER

  2. CAUTION: Use a suitable trim tool.

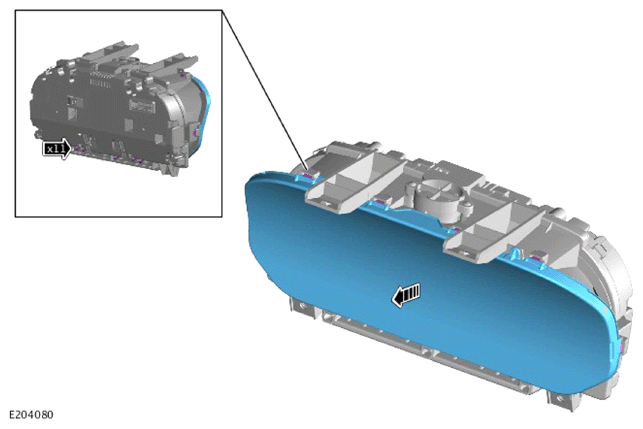

    G14292467Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the Instrument Cluster (IC) lens.

  3. NOTE: If equipped.

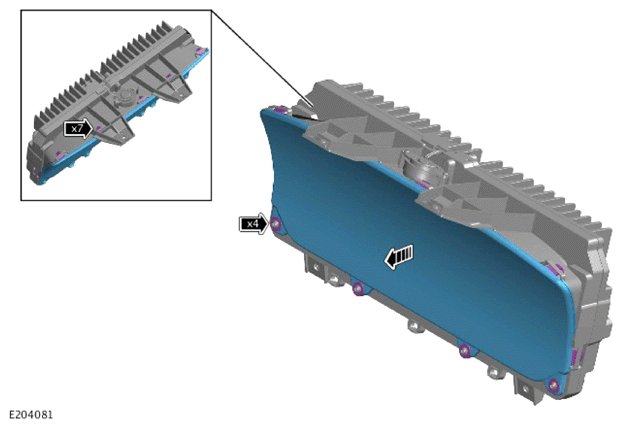

    G14292468Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the Instrument Cluster (IC) lens.
