Instrument Cluster (G2133053): Installation

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

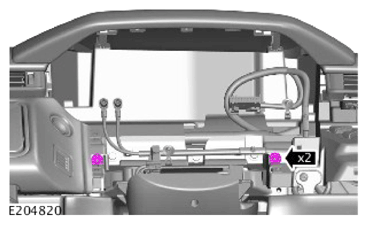

Install the two special washers.
NOTE: Install the trim retaining clips in the molding prior to installing the components.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the retaining clips.
- Connect the instrument cluster electrical connector.
- Secure the wiring harness to the clips.
- Install the instrument cluster.
  Torque : 1.7 Nm
- Install the instrument cluster upper cover.
  Torque : 1.7 Nm
- Install the instrument cluster trim panel.
  Torque : 1.7 Nm
- Install the driver side face level vent.
  Torque : 2 Nm
- Install the instrument panel outer trim panel.
  Torque : 1.7 Nm
Install the instrument panel end trim panel.
Install the steering column upper cover.
- Install the steering column lower panel.
  Torque : 2 Nm
CAUTION: Only applicable vehicles with software numbers K8D2-14C104-AC or L8B2-14C104-AC as detailed in removal step 1 .
NOTE:
- Only complete this step if a new instrument cluster is to be installed.
- This step is only applicable to 19MY onward vehicles.
- Non-NAS Markets only.
- SRO must be claimed separately.
Install a new RFA .

Refer to: REMOTE FUNCTION ACTUATOR
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY
NOTE: Only complete the following step(s) if the new component is to be installed.

Use the Land Rover approved diagnostic equipment to configure the instrument cluster.

General Equipment: Land Rover diagnostic equipment
