Instrument Cluster - General Information
Warning Indicators
NOTE:

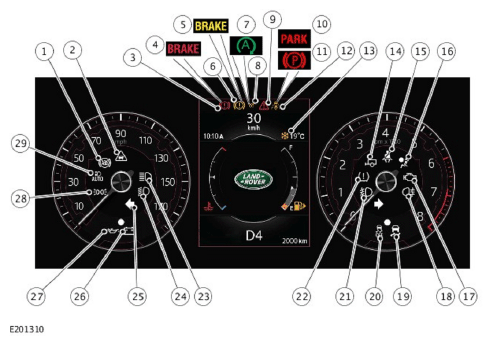

Conventional display warning indicators shown, the virtual display warning indicators are similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Anti-lock Brake System (ABS) warning indicator (amber) |
| 2 | Forward alert warning indicator (green) |
| 3 | Brake system warning indicator (red) - Rest Of World (ROW) market |
| 4 | Brake system warning indicator (red) - North American Specification (NAS) market |
| 5 | Brake system warning indicator (amber) - NAS market |
| 6 | Brake system warning indicator (amber) - ROW market |
| 7 | Auto stop/start warning indicator (green) |
| 8 | Glow plugs active warning indicator (amber) - Diesel models only |
| 9 | Critical warning indicator (red) |
| 10 | Electric Park Brake (EPB) system warning indicator (red) - NAS market |
| 11 | EPB system warning indicator (red) - ROW market |
| 12 | Follow mode warning indicator (amber) |
| 13 | External temperature warning (amber) |
| 14 | Trailer turn signal warning indicator (green) |
| 15 | Seatbelt warning indicator (red) |
| 16 | Airbag warning indicator (amber) |
| 17 | Malfunction Indicator Lamp (MIL) warning indicator (amber) |
| 18 | Rear fog lamps active warning indicator (amber) |
| 19 | Dynamic Stability Control (DSC) active warning indicator (amber) |
| 20 | DSC OFF warning indicator (amber) |
| 21 | Front fog lamps active warning indicator (green) |
| 22 | Tire Pressure Monitoring System (TPMS) warning indicator (amber) |
| 23 | High beam active warning indicator (blue) |
| 24 | Low beam indicator (green) |
| 25 | Turn signal indicator active (green) |
| 26 | Charge warning indicator (red) |
| 27 | Oil pressure warning indicator (red) |
| 28 | Side lamps active warning indicator (green) |
| 29 | Auto High Beam (AHB) active warning indicator (green) |
The warning indicators are mainly located in three groups:
- In the speedometer display
- In the tachometer display
- In a central position at the top of the message center.
The Instrument Cluster (IC) illuminates the warning indicators via signals from other system control modules and sensors. These signals are received by the IC on the High Speed (HS) Controller Area Network (CAN) comfort and chassis systems buses. Some indicators are activated by an external system control module but the IC contains the control logic.
