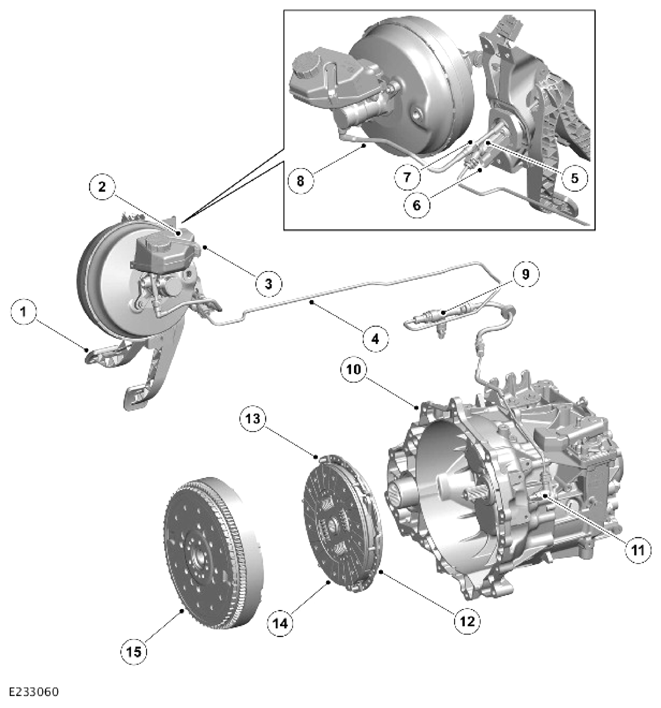

Component Location
| ITEM | DESCRIPTION |
|---|---|
| 1 | Clutch pedal |
| 2 | Brake fluid reservoir |
| 3 | Brake fluid level sensor |
| 4 | High Pressure (HP) clutch line |
| 5 | Clutch master cylinder |
| 6 | Clutch pedal position sensor |
| 7 | Low Pressure (LP) hose connector |
| 8 | LP hose |
| 9 | Clutch bleeding point |
| 10 | Transmission |
| 11 | Clutch slave cylinder |
| 12 | Clutch cover assembly |
| 13 | Clutch cover assembly mounting bolt (quantity 6) |
| 14 | Clutch driven plate |
| 15 | Dual mass flywheel |
