Component Location

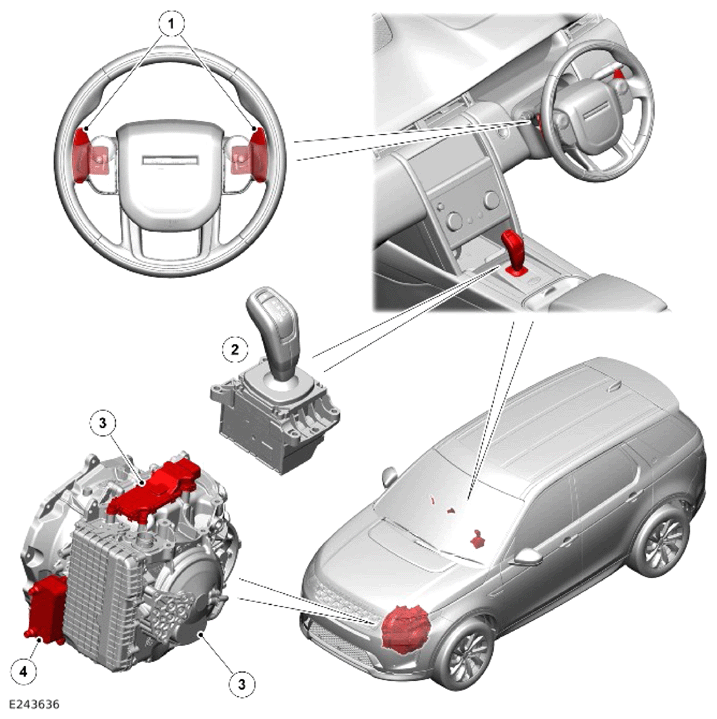

G14453088Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Paddle shifters - upshift/downshift
2 Transmission Control Switch (TCS)
3 Transmission Control Module (TCM)
4 ZF 9HP50 Automatic transmission
5 Automatic Transmission Fluid (ATF) cooler with integrated thermostat
