| 1 |

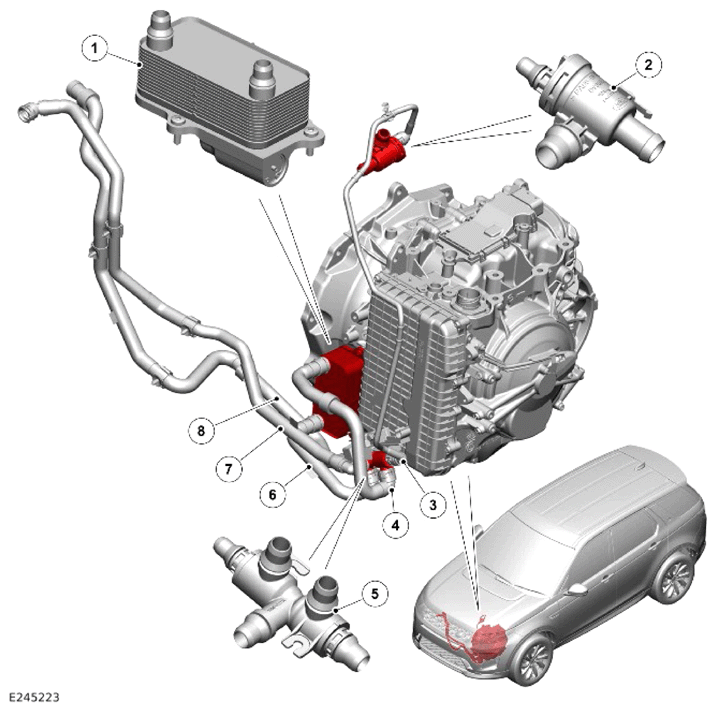

Automatic Transmission Fluid (ATF) cooler |
| 2 |
Thermostatic control valve |
| 3 |
Hot engine coolant inlet |
| 4 |
ATF cooler inlet |
| 5 |
ATF warming valve |
| 6 |
ATF cooler outlet |
| 7 |
Radiator low temperature zone (cold engine coolant inlet) |
| 8 |
Engine coolant return to variable coolant pump inlet |
