Wheels And Tires (G2319455)

RECOMMENDED LUBRICANT SPECIFICATION

ITEM LAND ROVER PART NO.
Wheel hub spigot RYL 105020
TORQUE SPECIFICATION

COMPONENT TORQUE LOCATION

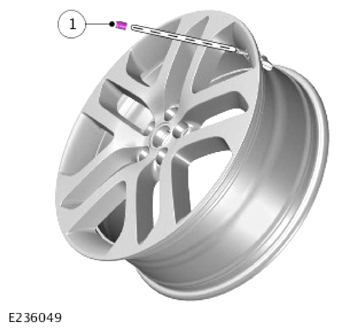

G14422576Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

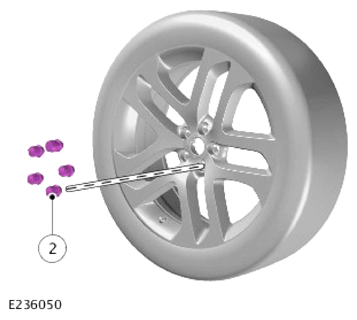

G14422577Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque Specifications - Vehicles built in Changshu up to VIN: LG562288.

CAUTION: Wheel nuts must be tightened by diagonal selection
TORQUE SPECIFICATION

  DESCRIPTION NM LB-FT LB-IN
1 Tire pressure sensor 8 - 71
2 Wheel nuts Stage 1: 4 Stage 2: 70 Stage 3: 133 Stage 1: 3 Stage 2: 52 Stage 3: 98 -

Torque Specifications - Vehicles built in Changshu from VIN: LG562289.

CAUTION: Wheel nuts must be tightened by diagonal selection
TORQUE SPECIFICATION

  DESCRIPTION NM LB-FT LB-IN
1 Tire pressure sensor 8 - 71
2 Wheel nuts Stage 1: 4 Stage 2: 70 Stage 3: 140 Stage 1: 3 Stage 2: 52 Stage 3: 103 -

Torque Specifications - Except vehicles built in Changshu.

CAUTION: Wheel nuts must be tightened by diagonal selection
TORQUE SPECIFICATION

  DESCRIPTION NM LB-FT LB-IN
1 Tire pressure sensor 8 - 71
2 Wheel nuts Stage 1: 4 Stage 2: 70 Stage 3: 133 Stage 1: 3 Stage 2: 52 Stage 3: 98 -

Wheel Type

CAUTION: With reduced size spare wheel fitted, do not exceed 50 mph (80 km/h) and replace with standard size wheel at earliest opportunity.
ITEM SPECIFICATION
17" Alloy 17 x 7.0 CH 45
18" Alloy 18 x 8.0 CH 45
20" Alloy 20 x 8.0 CH 45
21" Alloy 21 x 8.0 CH 45
18" Spare wheel (Space saver) 18 x 4.0 CH 15

Tire Sizes

CAUTION: Inner tubes must not be fitted with any of these tires.
WHEEL SIZE TIRE SIZE LOAD RATING/SPEED RATING
17 x 7.0 CH 45 225/65 R17 106V
17 x 7.0 CH 45 235/65 R17 108V
18 x 8.0 CH 45 235/60 R18 107V
20 x 8.0 CH 45 235/50 R20 104Y
20 x 8.0 CH 45 235/50 R20 104W
21 x 8.0 CH 45 245/45 R21 104Y
21 x 8.0 CH 45 245/45 R21 104W
18 x 4.0 CH 15 T155/85 R18 115M
TIRE PRESSURE SPECIFICATION (ADAPTIVE DAMPING)

TIRE SIZE VEHICLE LOADED TO NORMAL OPERATING CONDITIONS VEHICLE LOADED TO MAXIMUM VEHICLE GROSS WEIGHT
FRONT (BAR) FRONT (LB/IN2 ) REAR (BAR) REAR (LB/IN2 ) FRONT (BAR) FRONT (LB/IN2 ) REAR (BAR) REAR (LB/IN2 )
225/65 R17 106V 2.4 35 2.2 32 2.5 36 2.6 38
235/65 R17 108V 2.4 35 2.2 32 2.5 36 2.6 38
235/60 R18 107V 2.4 35 2.2 32 2.6 38 2.4 35
235/50 R20 104Y 2.5 36 2.3 34 2.6 38 2.8 41
235/50 R20 104W 2.5 36 2.4 35 3.0 44 2.9 43
245/45 R21 104Y 2.5 36 2.3 34 2.6 38 2.8 41
245/45 R21 104W 2.5 36 2.3 34 3.0 44 2.9 43
155/85 R18 Spare wheel (Space saver) 4.2 60 4.2 60 4.2 60 4.2 60

Normal operating conditions: up to 4 occupants

TIRE PRESSURE SPECIFICATION (PASSIVE DAMPING)

TIRE SIZE VEHICLE LOADED TO NORMAL OPERATING CONDITIONS VEHICLE LOADED TO MAXIMUM VEHICLE GROSS WEIGHT
FRONT (BAR) FRONT (LB/IN2 ) REAR (BAR) REAR (LB/IN2 ) FRONT (BAR) FRONT (LB/IN2 ) REAR (BAR) REAR (LB/IN2 )
235/65 R17 108V 2.4 35 2.2 32 2.5 36 2.6 38
235/60 R17 108V 2.4 35 2.2 32 2.5 36 2.6 38
235/60 R18 107V 2.4 35 2.2 32 2.6 38 2.4 35
235/50 R20 104Y 2.5 36 2.3 34 2.6 38 2.8 41
235/50 R20 104W 2.5 36 2.4 35 3.0 44 2.9 43
155/85 R18 Spare wheel (Space saver) 4.2 60 4.2 60 4.2 60 4.2 60

Normal operating conditions: up to 4 occupants
