Wheel And Tire (G2298205): Installation

WARNING: Apply a small amount of grease to the bore and spigot areas of the wheel before installation. Make sure the grease does not come into contact with the vehicles braking components and the wheel stud threads. Failure to follow these instructions may result in personal injury.

NOTE: Vehicles built in Changshu up to VIN: LG562288.

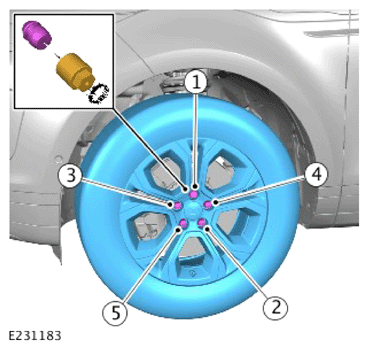

Fig 1: Wheel Nut Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the wheel and tire.
- Install the locking wheel nut, if equipped.
- Tighten the nuts in the indicated sequence.
  Torque

  Stage 1: Stage 1: 4 Nm

  Stage 2: Stage 2: 70 Nm

  Stage 3: Stage 3: 133 Nm
WARNING: Apply a small amount of grease to the bore and spigot areas of the wheel before installation. Make sure the grease does not come into contact with the vehicles braking components and the wheel stud threads. Failure to follow these instructions may result in personal injury.

NOTE: Vehicles built in Changshu from VIN: LG562289.

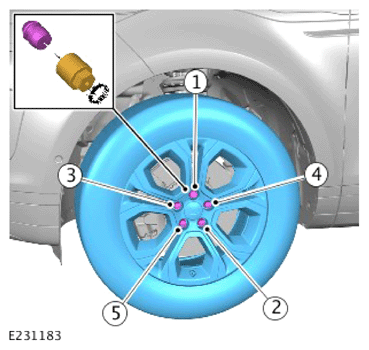

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the wheel and tire.
- Install the locking wheel nut, if equipped.
- Tighten the nuts in the indicated sequence.
  Torque

  Stage 1: Stage 1: 4 Nm

  Stage 2: Stage 2: 70 Nm

  Stage 3: Stage 3: 140 Nm
WARNING: Apply a small amount of grease to the bore and spigot areas of the wheel before installation. Make sure the grease does not come into contact with the vehicles braking components and the wheel stud threads. Failure to follow these instructions may result in personal injury.

NOTE: Except vehicles built in Changshu.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the wheel and tire.
- Install the locking wheel nut, if equipped.
- Tighten the nuts in the indicated sequence.
  Torque

  Stage 1: Stage 1: 4 Nm

  Stage 2: Stage 2: 70 Nm

  Stage 3: Stage 3: 133 Nm
