Tire Pressure Monitoring System Receiver (G2301184): Removal
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Remove the headliner.
Refer to: HEADLINER .

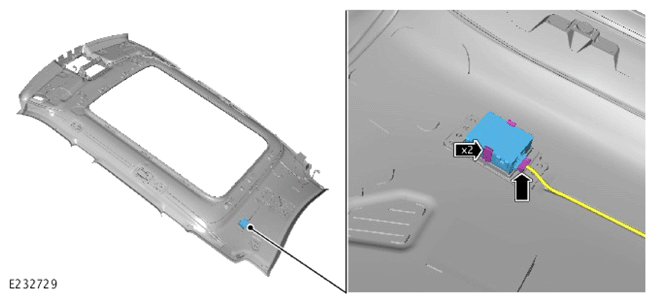

- Remove the Tire Pressure Monitoring System (TPMS) receiver.
- Disconnect the electrical connector.
