Load Messages
The load setting of the vehicle may be changed in the 'Tire Pressure Monitoring load setting' menu in the Instrument Cluster (IC).

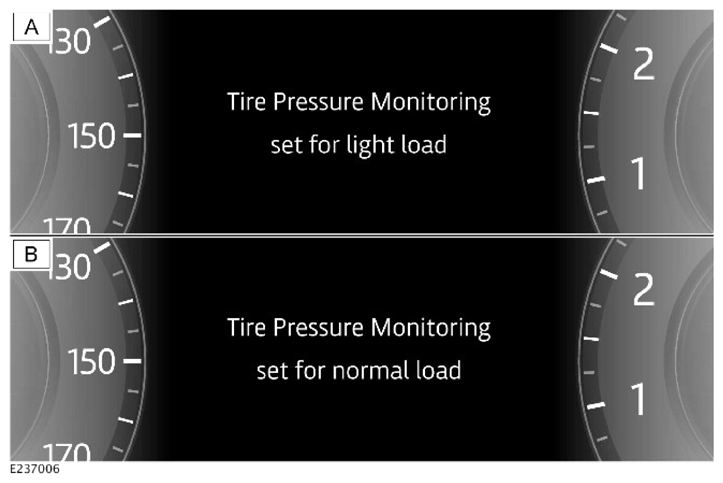

North American Specification Market

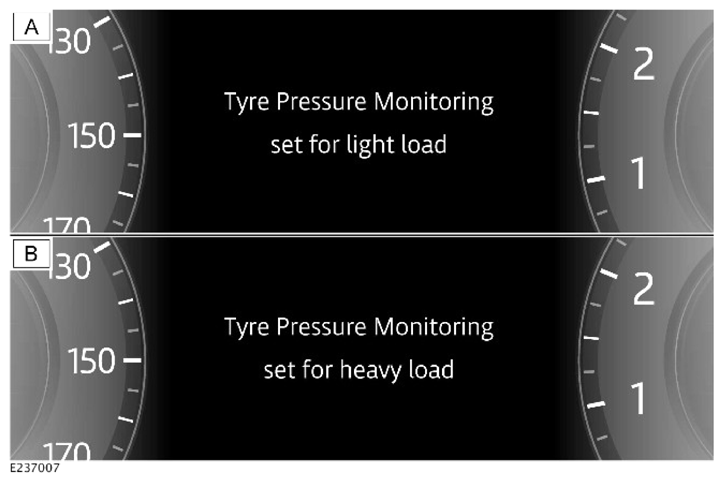

European Market
The load mode can be selected from the 'Tire Pressure Monitoring load setting' menu in the IC.
The IC displays 'Tire Pressure Monitoring set for Light Load', which means the light load mode has been set, and lower tire pressure is recommended.
The IC displays the following message:
- The 'Tire Pressure Monitoring set for Normal Load' (North American Specification (NAS) market only).
- The 'Tire Pressure Monitoring set for Heavy Load' (European market only).
It is a reminder that the heavy/normal load mode has been set, and the higher tire pressure is recommended.
