Instrument Cluster

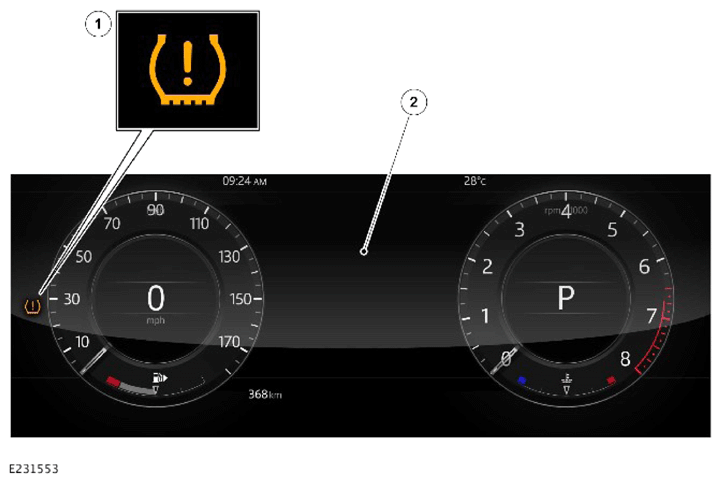

| ITEM | DESCRIPTION |
|---|---|
| 1 | Amber warning indicator |
| 2 | Information and message center |
NOTE:
- The vehicle may be equipped with a different Instrument Cluster (IC) from the one shown in the graphic. The amber warning indicator looks similar.
For additional information, Refer to: INSTRUMENT PANEL CLUSTER .
In the Instrument Cluster (IC) information and message center, via the 'Vehicle information', 'Recommended Pressures' and 'Tire Pressure Check' menus, you can:
- Access the recommended cold tire pressures and actual tire pressure figures.
- Change the pressure units (kPa, psi or bar).
- Select light or heavy load monitoring.
For additional information, Refer to: INFORMATION AND MESSAGE CENTER .
The warning indications to the driver are common on all vehicles equipped with the Tire Pressure Monitoring System (TPMS). Warnings are conveyed by an amber warning indicator and a message displayed in the information and message center. The warning indicator and information and message center are driven by High Speed (HS) Controller Area Network (CAN) messages from the Tire Pressure Monitoring System Control Module (TPMSCM).
