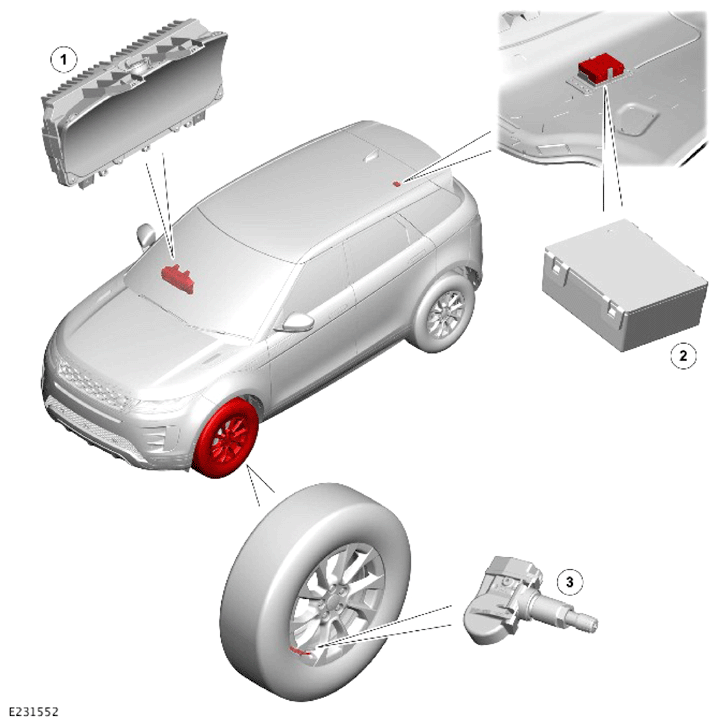

Component Location - 1 Of 1
NOTE:
- Only vehicles equipped with a full-size spare wheel will be installed with a spare tire pressure sensor.
- Right Hand Drive (RHD) vehicle is shown. Left Hand Drive (LHD) vehicle is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Instrument Cluster (IC) |
| 2 | Tire Pressure Monitoring System Control Module (TPMSCM) |
| 3 | Tire pressure sensor |
