Vehicle Dynamic Suspension (G2318732)

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN

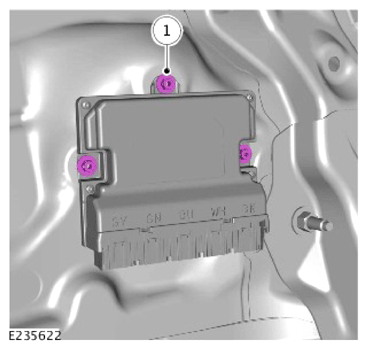

1	Chassis Control Module (CHCM) nuts	6	-	53

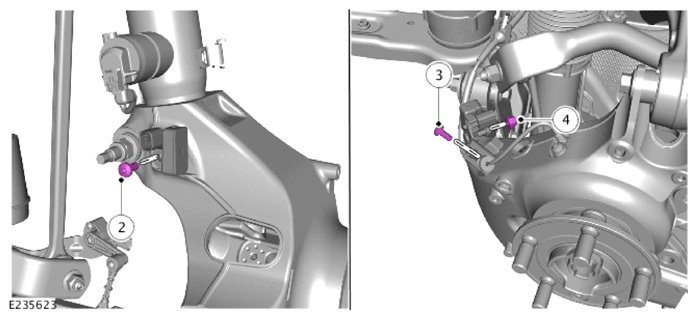

2	Front accelerometer sensor bolt	9	-	80
3	Rear accelerometer sensor bolt	6	-	53
4	Rear accelerometer sensor nut	6	-	53

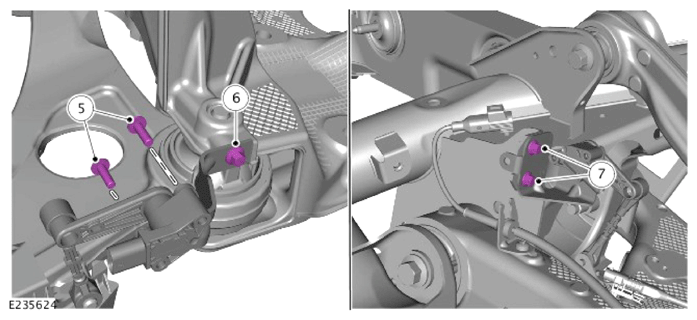

5	Front suspension height sensor screws	3	-	27
6	Front suspension height sensor bolt	9	-	80
7	Rear suspension height sensor bolts	9	-	80
