Front Accelerometer Sensor (G2298000): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the wheel and tire.
Refer to: WHEEL AND TIRE .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

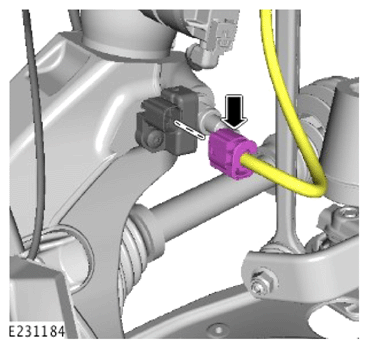

Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

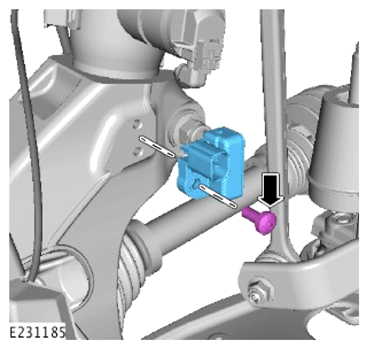

- Remove the bolt.
- Remove the accelerometer sensor.
