Chassis Control Module (G2312324): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT .
Remove the left loadspace side trim panel.
Refer to: LEFT LOADSPACE SIDE TRIM PANEL .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Reposition the deployable tow bar speaker.
- Remove the noise, vibration and harshness material.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

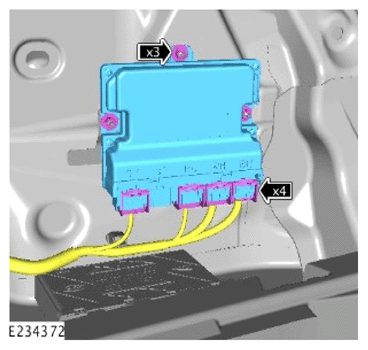

- Disconnect the 4 electrical connectors.
- Remove the 3 nuts.
- Remove the chassis control module.
