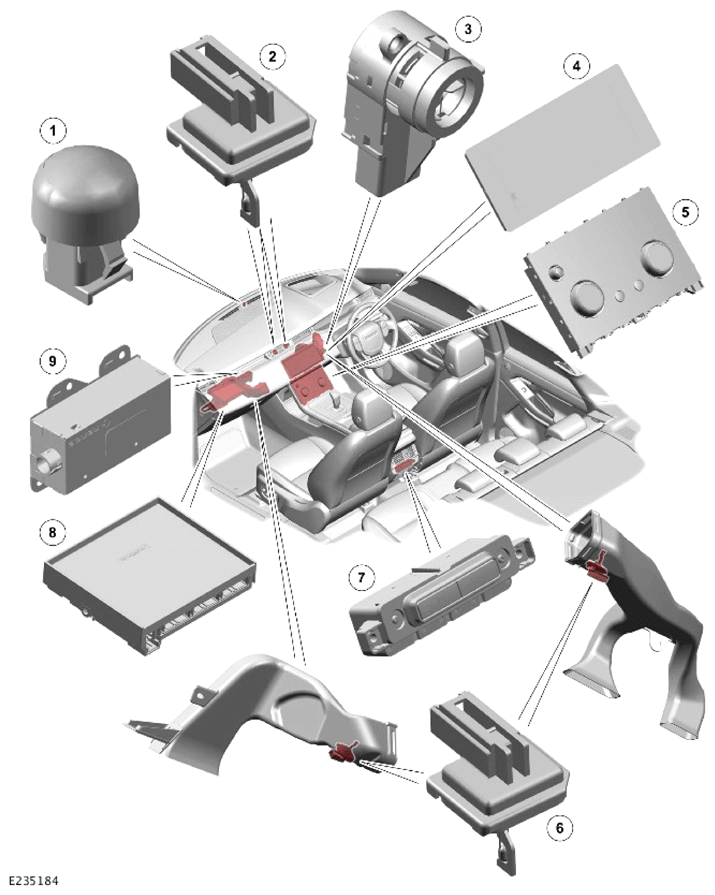

Component Location - 1 Of 2
NOTE:
Right Hand Drive (RHD) vehicle is shown, Left Hand Drive (LHD) vehicle is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Sunload sensor |
| 2 | Face vent air temperature sensor (quantity 2) |
| 3 | In-vehicle temperature sensor |
| 4 | Touchscreen (TS) |
| 5 | Integrated Control Panel (ICP) |
| 6 | Feet vent air temperature sensor (quantity 2) |
| 7 | Second row seat heater control |
| 8 | HVAC control module (HVAC) |
| 9 | Air ionizer |
