Component Location - 3 Of 3 - Internal Heat EXCHANGER

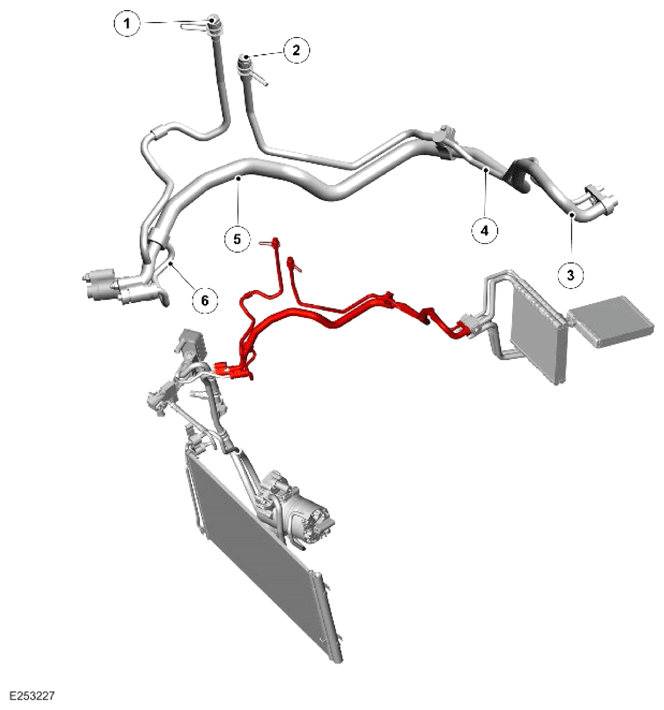

G14453794Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 LP  servicing connection
2 HP  servicing connection
3 Refrigerant pipe - LP
4 Refrigerant pipe - HP
5 Internal Heat Exchanger (IHX)
6 Refrigerant pipe - HP
