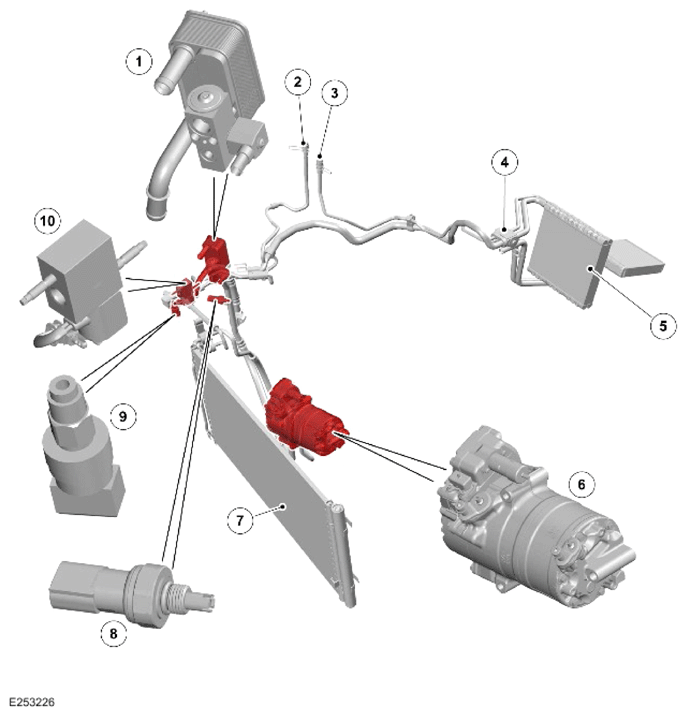

Component Location - 2 Of 3 - With Internal Heat EXCHANGER

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

ITEM	DESCRIPTION
1	PHEV  battery cooler
2	LP  servicing connection
3	HP  servicing connection
4	TXV
5	Evaporator
6	Electric A/C  compressor
7	A/C  condenser
8	Refrigerant pressure temperature sensor - LP  pipe
9	Refrigerant pressure sensor - HP  pipe
10	A/C  isolation valve
