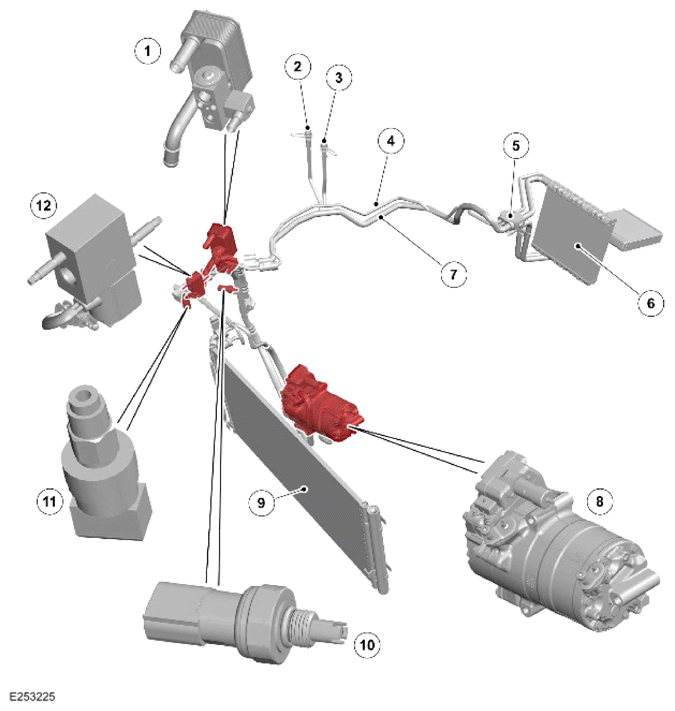

Component Location - 1 Of 3 - Without Internal Heat EXCHANGER
| ITEM | DESCRIPTION |
|---|---|
| 1 | Plug-in Hybrid Electric Vehicle (PHEV) battery cooler |
| 2 | Low Pressure (LP) servicing connection |
| 3 | High Pressure (HP) servicing connection |
| 4 | Refrigerant pipe - HP |
| 5 | Thermostatic Expansion Valve (TXV) |
| 6 | Evaporator |
| 7 | Refrigerant pipe - LP |
| 8 | Electric Air Conditioning (A/C) compressor |
| 9 | A/C condenser |
| 10 | Refrigerant pressure temperature sensor - LP pipe |
| 11 | Refrigerant pressure sensor - HP pipe |
| 12 | A/C isolation valve |
