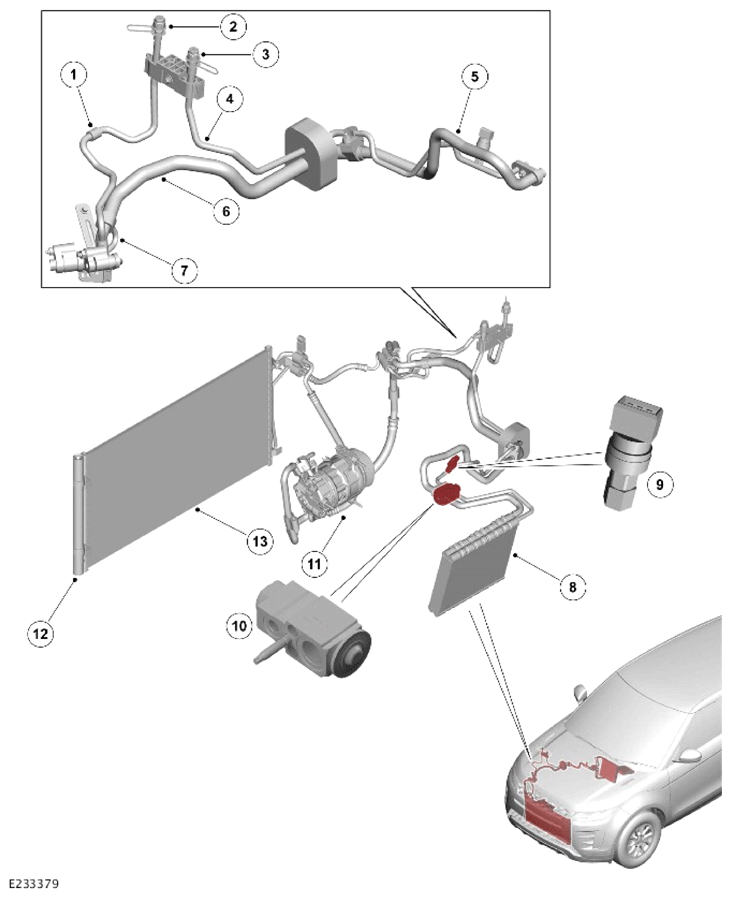

Component Location - 2 Of 2 - Vehicles With An Internal Heat EXCHANGER
| ITEM | DESCRIPTION |
|---|---|
| 1 | Low Pressure (LP) pipe |
| 2 | LP servicing connection |
| 3 | High Pressure (HP) servicing connection |
| 4 | HP pipe |
| 5 | LP pipe |
| 6 | Internal Heat Exchanger (IHX) |
| 7 | HP pipe |
| 8 | Evaporator |
| 9 | Refrigerant pressure sensor |
| 10 | Thermostatic Expansion Valve (TXV) |
| 11 | Air Conditioning (A/C) compressor |
| 12 | A/C receiver dryer |
| 13 | A/C condenser |
