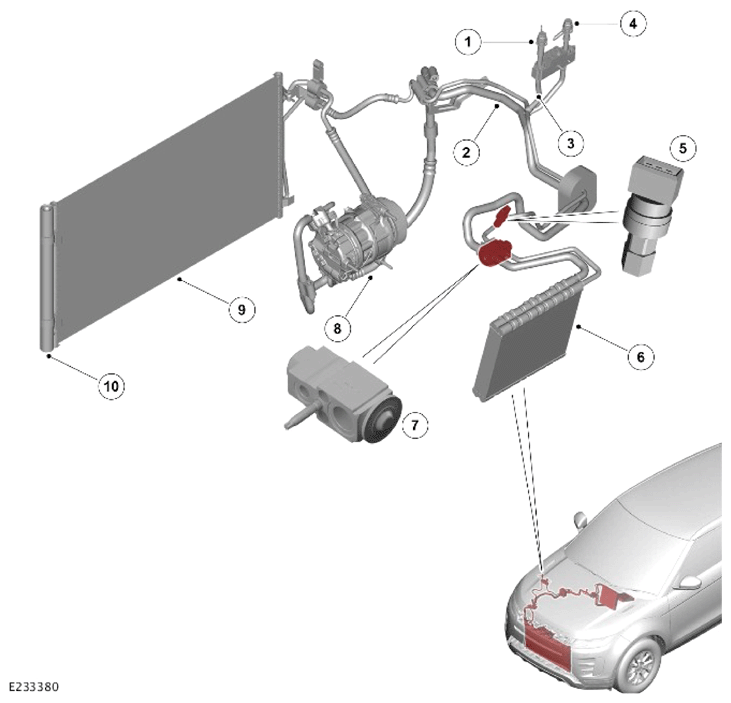

| 1 |
High Pressure (HP) servicing connection |
| 2 |
Low Pressure (LP) pipe |
| 3 |
HP pipe |
| 4 |
LP servicing connection |
| 5 |
Refrigerant pressure sensor |
| 6 |
Evaporator |
| 7 |
Thermostatic Expansion Valve (TXV) |
| 8 |
Air Conditioning (A/C) compressor |
| 9 |
A/C condenser |
| 10 |
A/C receiver dryer |
