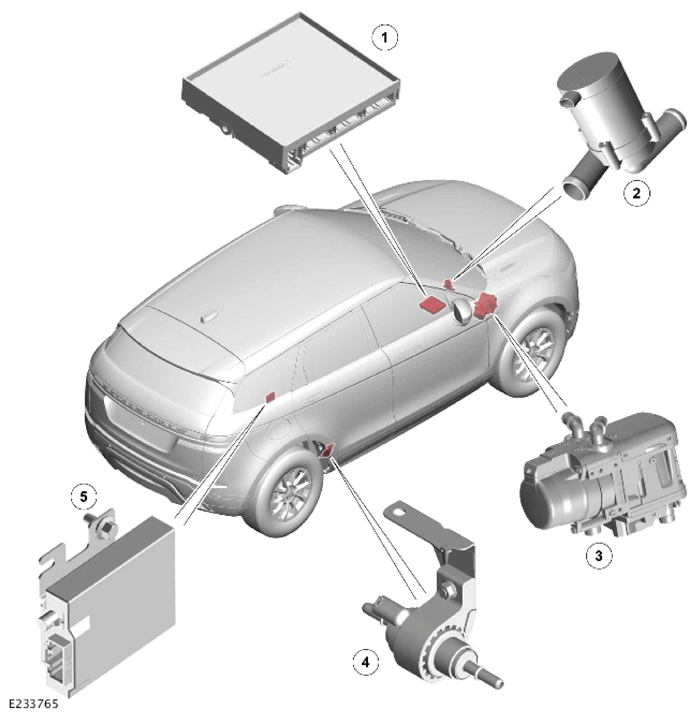

Component Location - 1 Of 1
NOTE:
Petrol vehicle is shown, diesel vehicles are similar.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
HVAC control module |
| 2 |
Fuel Fired Booster Heater (FFBH) coolant pump |
| 3 |
FFBH |
| 4 |
FFBH fuel pump |
| 5 |
FFBH receiver (vehicles with remote control) |
