Fuel Tank (G2300118): Removal

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Always follow the fuel system health and safety precautions when doing any repairs to the fuel system.
Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS .
Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT .
Drain the fuel tank.
Refer to: FUEL TANK DRAINING .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the second row seat cushion.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
1. Disconnect the 2 electrical connectors.
2. Remove the second row seat cushion.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 4 nuts.
- Remove the fuel pump access cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the 2 fuel lines.
- Release the fuel vapor pipe.
- Disconnect the 2 electrical connectors.
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the driveshaft.
Refer to: DRIVESHAFT .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

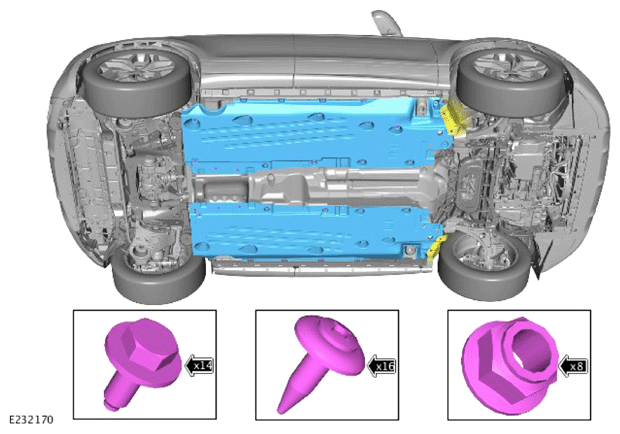

- Remove the 14 bolts.
- Remove the 16 clips.
- Remove the 8 nuts.
- Remove the left and right body undershields.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

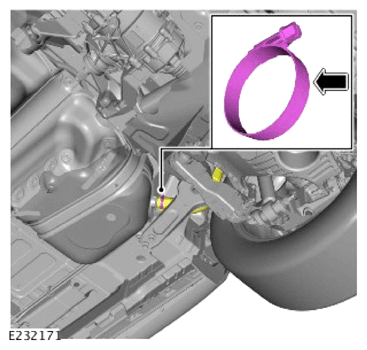

- Release the fuel filler hose clamp.
- Release the fuel filler hose from the fuel tank.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

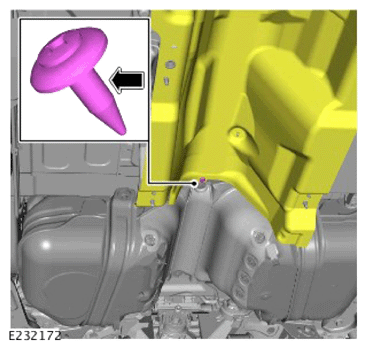

Remove the center heatshield clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

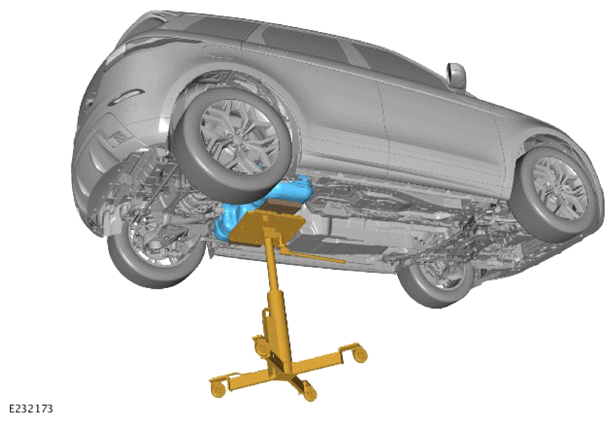

Use a suitable hydraulic jack to support the fuel tank.

General Equipment: Transmission jack
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

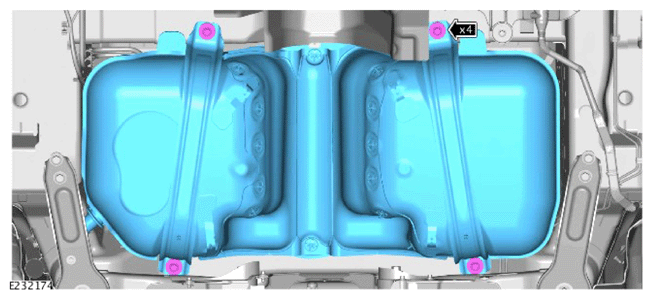

Remove the 4 fuel tank strap bolts.
CAUTION: Take extra care not to damage the center heatshield when removing the fuel tank.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

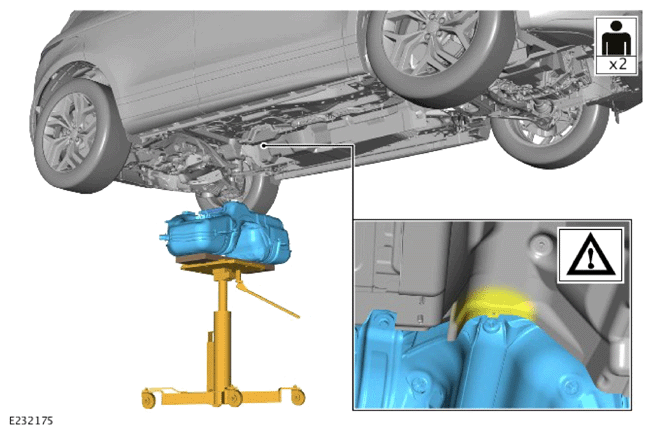

With assistance, remove the fuel tank.

General Equipment: Transmission jack
NOTE: Only do the following step(s), if a new fuel tank is to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

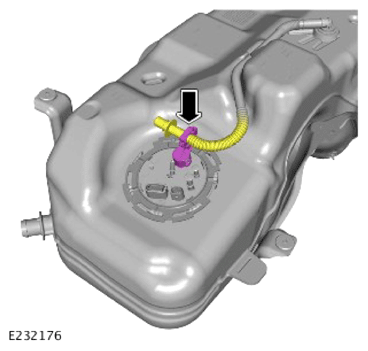

- Release the fuel vapor pipe bracket.
- Reposition the fuel vapor pipe.
- Discard the fuel vapor pipe bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

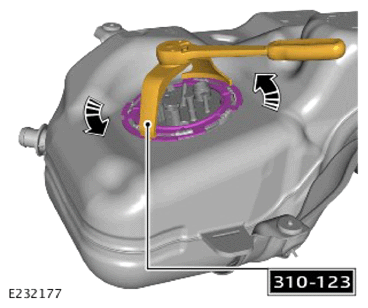

Use the special tool 310-123 to release the retaining ring.

Special Tool(s): 310-123
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Note the position of the fuel pump module before removal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the fuel pump module.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

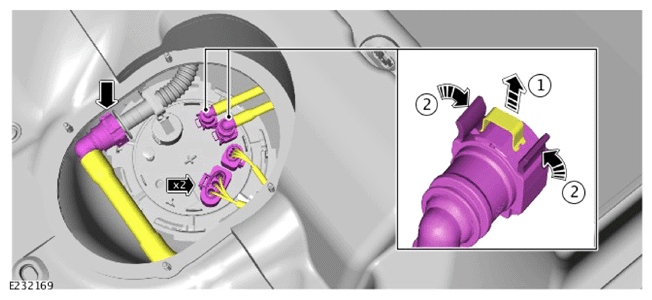

- Disconnect the 2 fuel lines.
- Release the fuel vapor pipe.
- Disconnect the 2 electrical connectors.

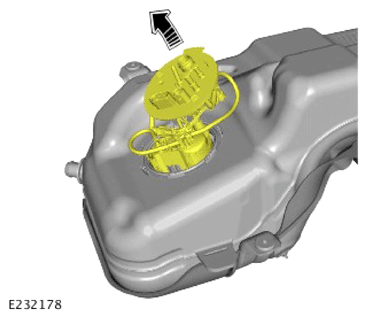

- Remove the fuel pump module.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the fuel pump module seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

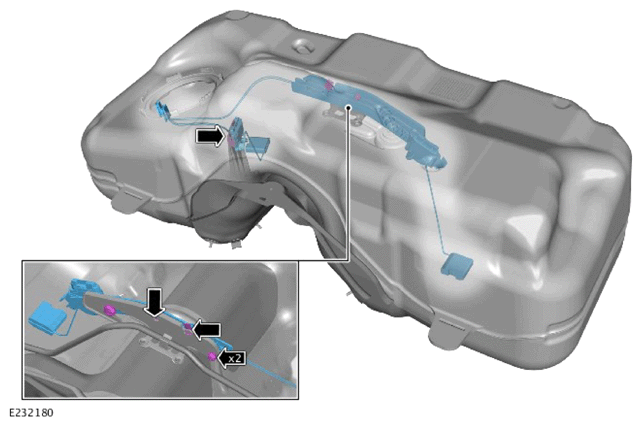

Remove the fuel level sensor assemblies.
NOTE: China market vehicles only

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the fuel level sensor assemblies.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

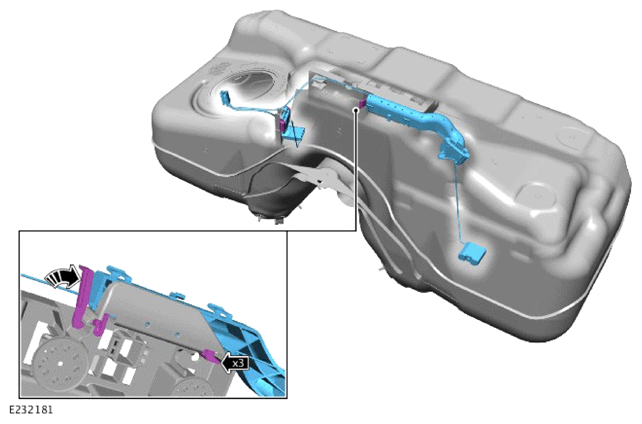

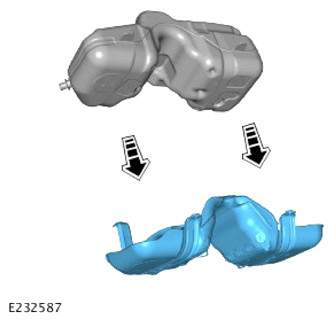

Remove the fuel tank heatshield and strap assembly.
