Component Location

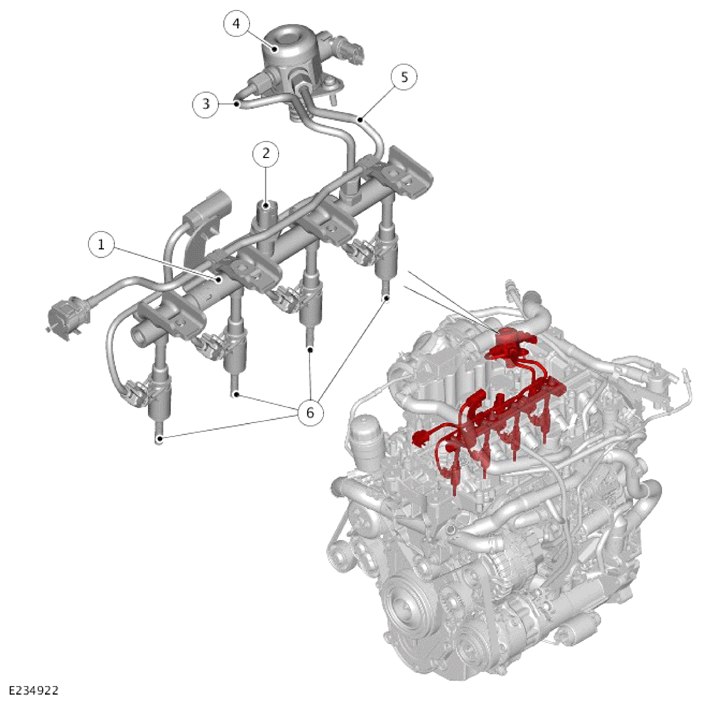

G14451223Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Fuel rail
2 Fuel Rail Pressure and Temperature (FRPT) sensor
3 High Pressure (HP) fuel line
4 HP fuel pump
5 Low Pressure (LP) fuel pipe
6 Fuel injector (quantity 4)
