Starter Motor (G2298661): Removal

NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: JACKING AND LIFTING .

  2. Disconnect the startup battery ground cable.

    Refer to: 12V SYSTEM DISCONNECT .

  3. Remove the engine undershield.

    Refer to: ENGINE UNDERSHIELD .

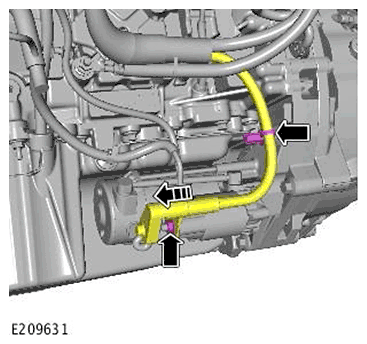

  4. G11718538Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the cover.
    • Remove the nut.
    • Release the wiring harness clip.
    • Reposition the wiring harness.

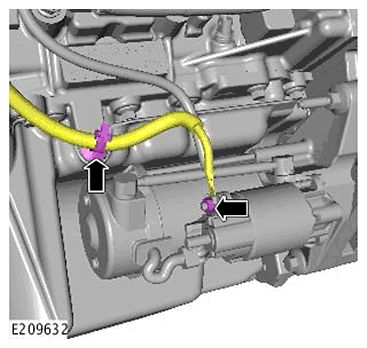

  5. G11718540Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the nut.
    • Release the wiring harness clip.
    • Reposition the wiring harness.

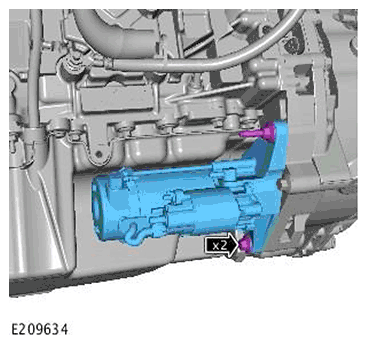

  6. G11718542Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 bolts.
    • Remove the starter motor.
