Ignition Switch

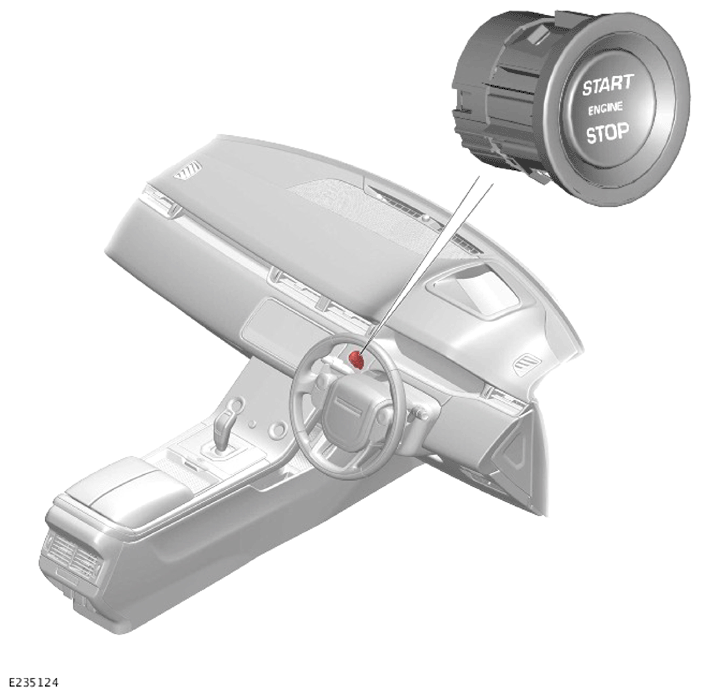

G14451532Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The ignition switch is located in the instrument panel. The ignition switch is hardwired to the Body Control Module/Gateway Module (BCM/GWM). When the ignition switch is operated, the 2 signal wires from the BCM/GWM are connected to ground.
