Auto Stop/Start Soft Key - Vehicles With INCONTROL Touch Pro Infotainment System

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

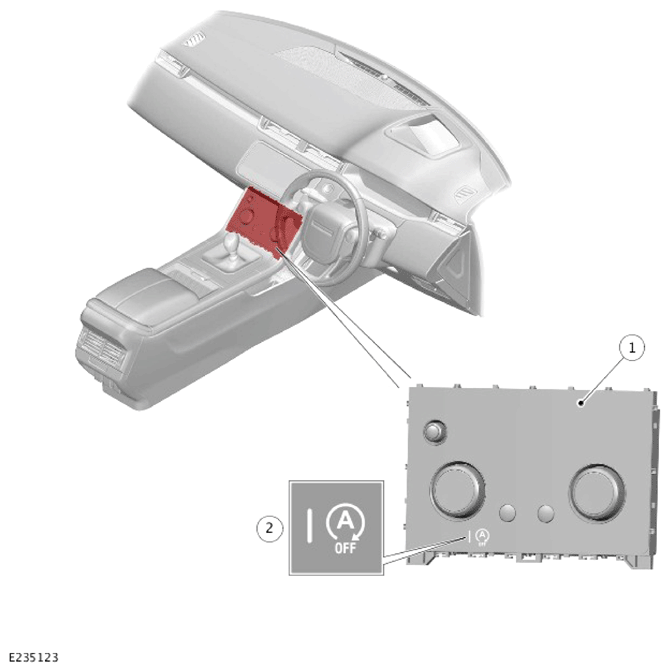

On vehicles with InControl Touch Pro infotainment system the auto stop/start soft key is located on the Integrated Control Panel (ICP). The ICP is located in the instrument panel. The ICP connects to the HVAC control module (HVAC) via a Private Controller Area Network (CAN) bus. When the driver enable or disable the auto stop/start system, the request is transmitted from the ICP to the Body Control Module/Gateway Module (BCM/GWM). The request message is transmitted via the Private CAN bus to the HVAC. The HVAC transmits the signal to the BCM/GWM via the High Speed (HS) CAN comfort systems bus.
