Belt Integrated Starter Generator

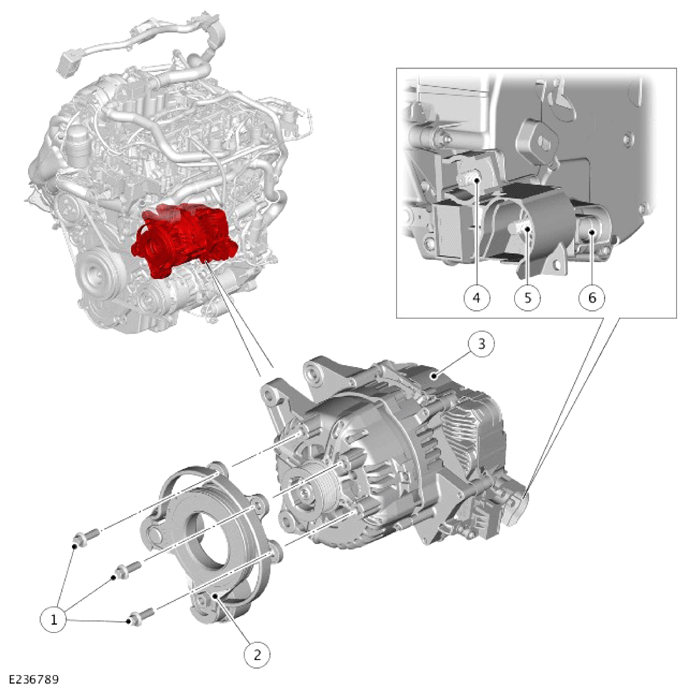

| ITEM | DESCRIPTION |
|---|---|
| 1 | Bolt |
| 2 | Belt Integrated Starter Generator (BISG) drive belt tensioner |
| 3 | BISG |
| 4 | MHEV battery negative connection |
| 5 | MHEV battery positive connection |
| 6 | Engine wiring harness connection |
The Belt Integrated Starter Generator (BISG) is part of the accessory drive system and used as a starter motor on the Mild Hybrid Electric Vehicle (MHEV). The BISG is used to provide a virtually silent engine restart.
For additional information, Refer to: BELT INTEGRATED STARTER GENERATOR - VEHICLES WITH: MHEV .
