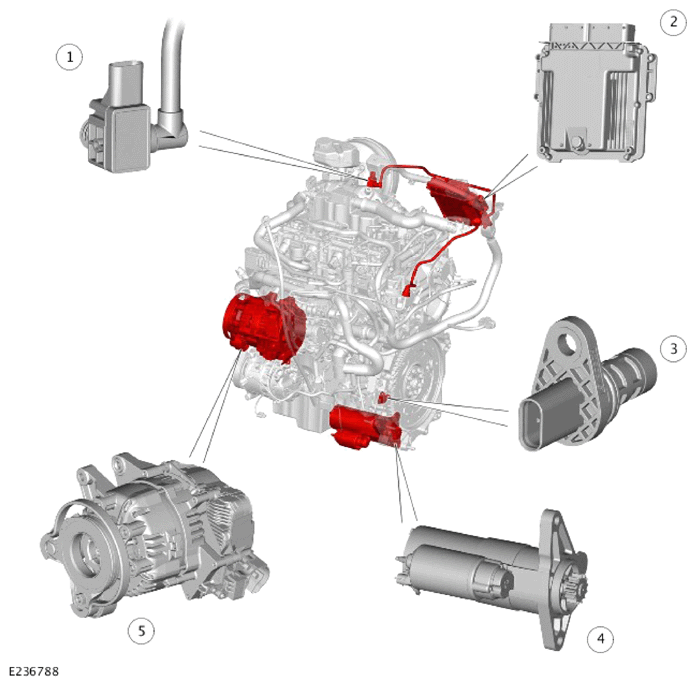

Component Location - 1 Of 2

G14451570Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Brake vacuum sensor
2 Powertrain Control Module (PCM)
3 Crankshaft Position (CKP) sensor
4 Starter motor
5 Belt Integrated Starter Generator (BISG)
