Engine Assembly Remove For Access (G2340859): Part(S)

STEP	PART NAME	QUALIFICATION	QUANTITY
Step 52	Air conditioning pipe O-ring seal(s)	All vehicles	6
Step 70	Air conditioning pipe O-ring seal(s)	All vehicles	2
Step 16	Catalytic converter to turbocharger clamp	All vehicles	1
Step 14	Catalytic converter to turbocharger gasket	All vehicles	1
Step 8	Drive plate bolts	All vehicles	6
Step 82	Driveshaft flange bolts	All vehicles	6
Step 43	Engine mounting bracket to engine bolts	All vehicles	5
Step 44	Engine mounting bracket to engine bolts	All vehicles	3

WARNING:

Make sure the powertrain is suitably supported at all times.
Failure to support the engine and transmission may cause personal injury.
Be prepared to collect escaping fuel.
Be prepared to collect escaping coolant.
Be prepared to collect escaping oil.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all components must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

The following step(s) applies to:

All vehicles

WARNING: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the engine lifting bracket.
  Special Tool(s): JLR-303-1569

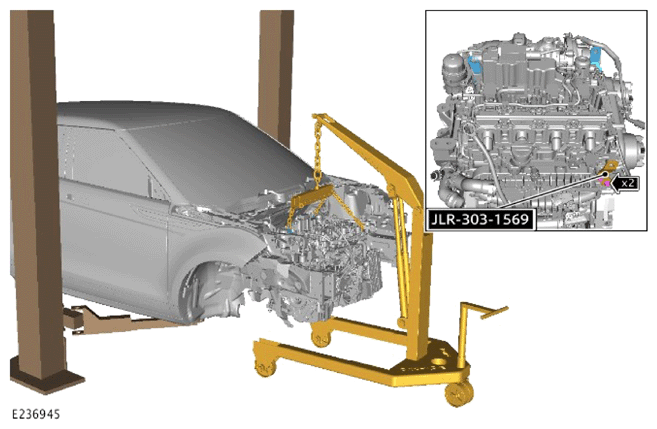

- Support the powertrain assembly using a suitable hydraulic jib crane.
  General Equipment: Hydraulic jib crane

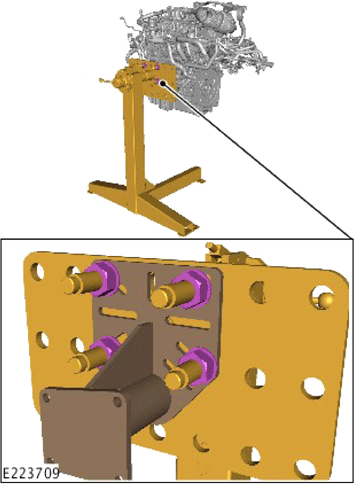

- Remove the 4 bolts and 4 nuts from the engine stand.
- With the aid of another technician, remove the engine assembly from the engine stand.
  General Equipment: Engine stand
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

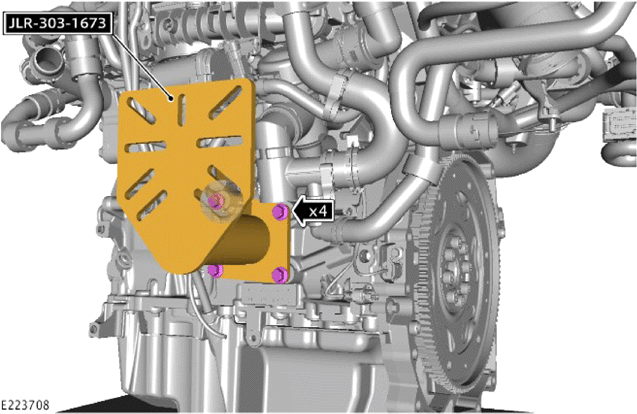

Remove the 4 bolts and remove the special tool.

Special Tool(s): JLR-303-1673
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Connect the 2 electrical connectors.
- Install the wiring harness clip.
WARNING:
- Make sure the engine and transmission are suitably supported at all times.
- This step requires the aid of another technician.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

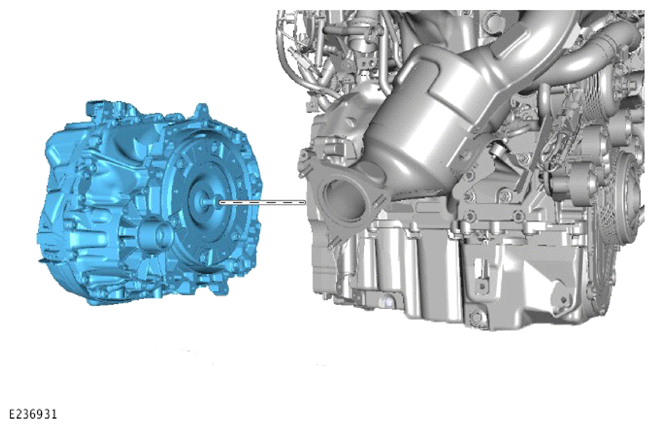

Install the transmission assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

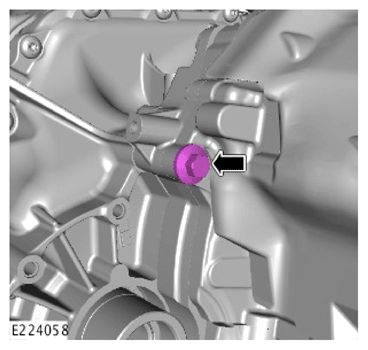

Install and tighten the transmission bolt.

Torque : 60 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

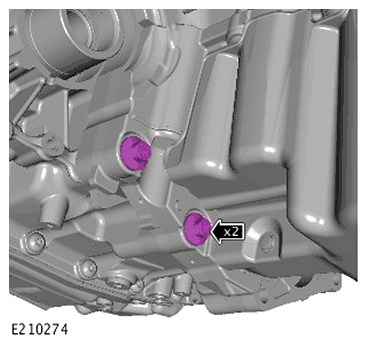

Install and tighten the 2 lower transmission bolts.

Torque : 60 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

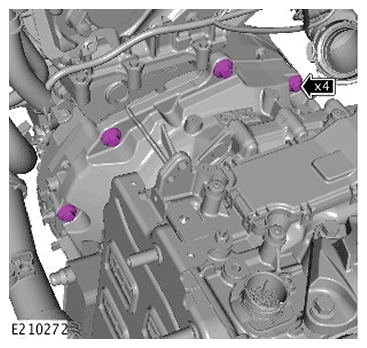

Install and tighten the 4 upper transmission bolts.

Torque : 60 Nm
CAUTION: Only rotate the crankshaft in a clockwise direction.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

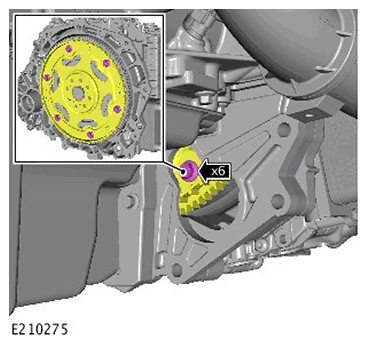

Install and tighten the 6 new drive plate bolts.

Renew Part: Drive plate bolts Quantity: 6 .

Torque : 62 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

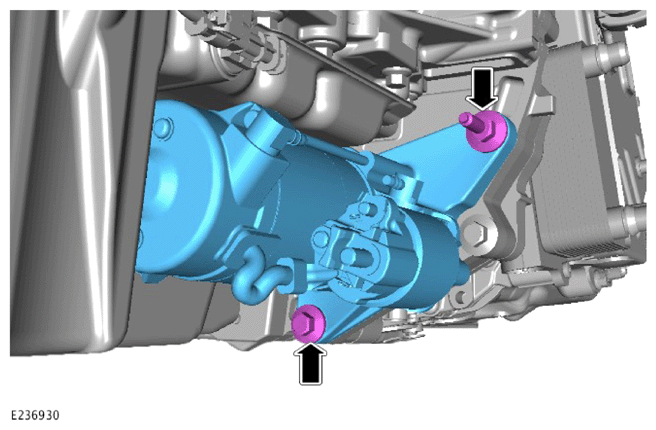

- Install the starter motor.
- Install and tighten the 2 bolts.
  Torque : 48 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

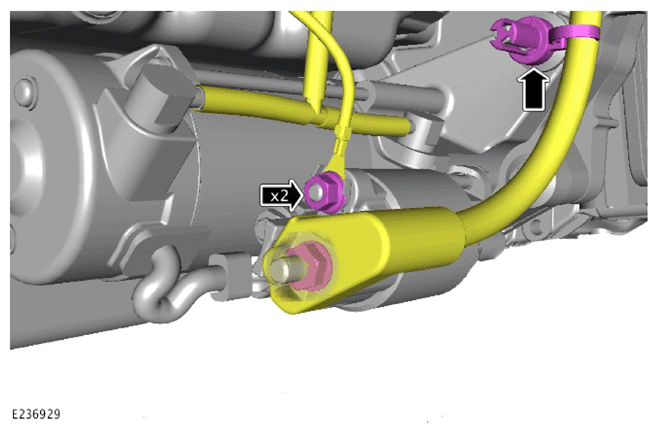

- Reposition the wiring harness.
- Install and tighten the 2 nuts.
  Torque : 10 Nm

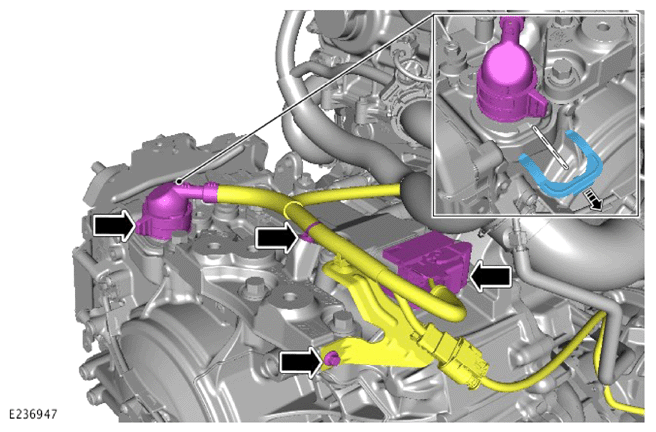

- Connect the breather hose.
- Install the wiring harness clip.
WARNING: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

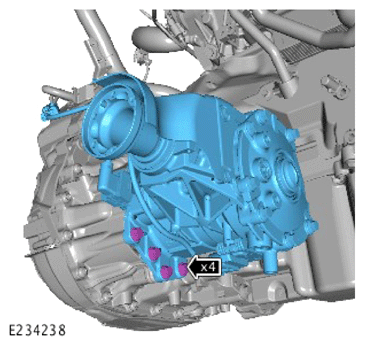

- With the aid of another technician, install the Power Transfer Unit (PTU).
- Install and tighten the 4 bolts.
  Torque : 65 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

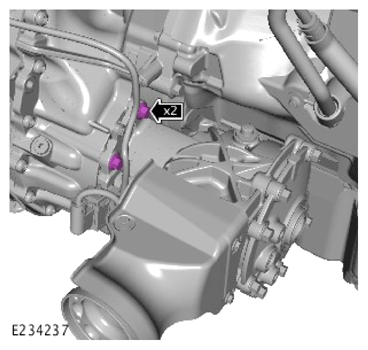

Install and tighten the 2 bolts.

Torque : 65 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

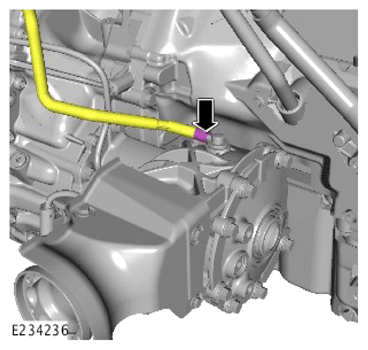

Connect the PTU breather hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

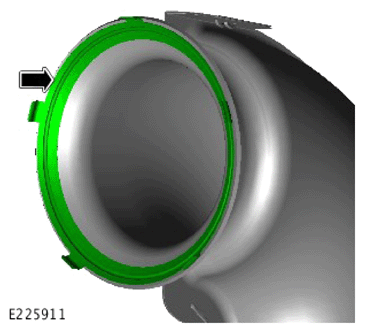

- Install a new gasket to the catalytic converter.
  Renew Part: Catalytic converter to turbocharger gasket Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

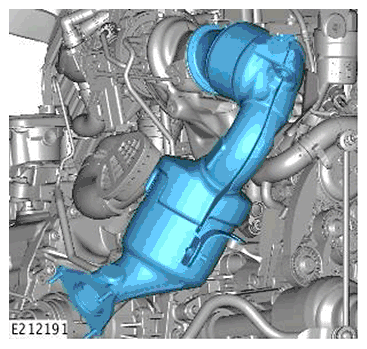

Install the catalytic converter.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

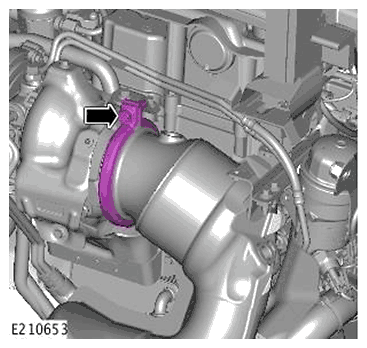

Install the new catalytic converter clamp finger tight at this stage.

Renew Part: Catalytic converter to turbocharger clamp Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

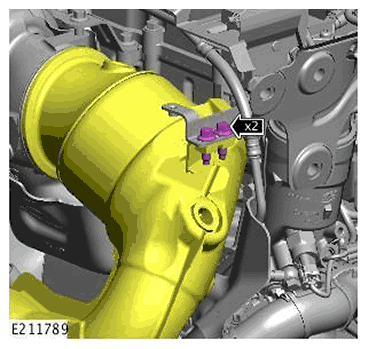

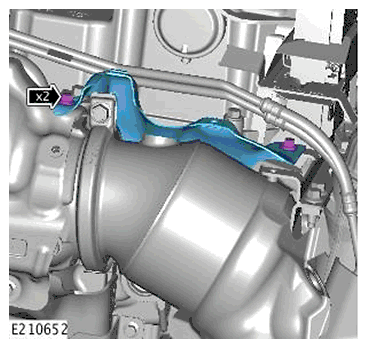

Install and tighten the 2 catalytic converter bracket bolts finger tight at this stage
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

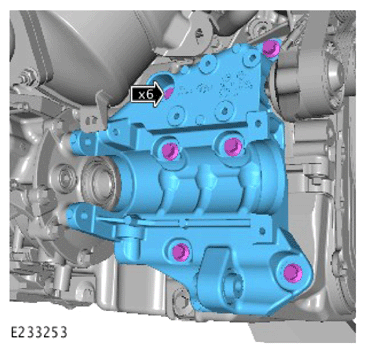

- Install the halfshaft support bracket.
- Install and tighten the 6 bolts.
  Torque : 70 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

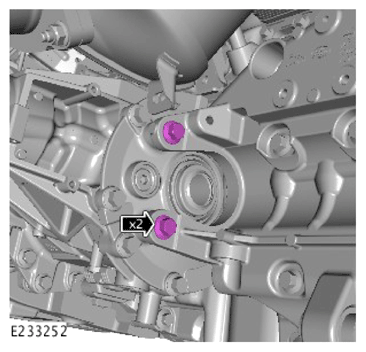

Install and tighten the 2 bolts.

Torque : 60 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

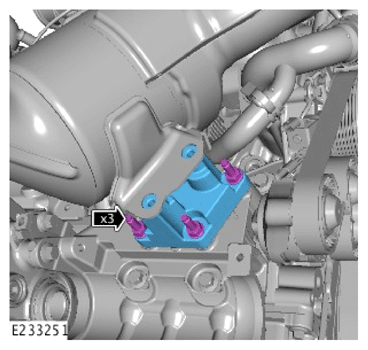

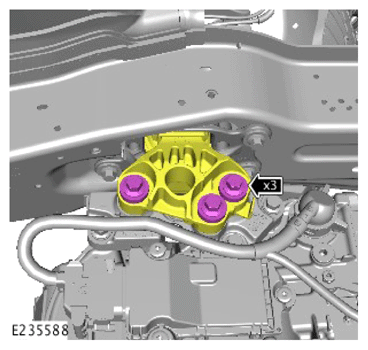

- Install the bracket.
- Install and tighten the 3 bolts.
  Torque : 24 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and tighten the 2 bolts.

Torque : 24 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the lower exhaust bracket.
- Install and tighten the 2 bolts.
  Torque : 24 Nm
Fully tighten the catalytic converter clamp.
Torque : 18 Nm
Fully tighten the 2 catalytic converter bracket bolts.
Torque : 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

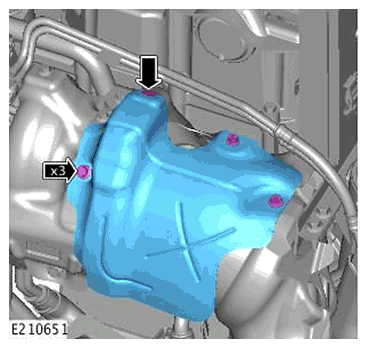

- Install the heatshield.
- Install and tighten the 2 bolts.
  Torque : 9 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the heatshield.
- Install and tighten the 3 bolts.
  Torque : 9 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

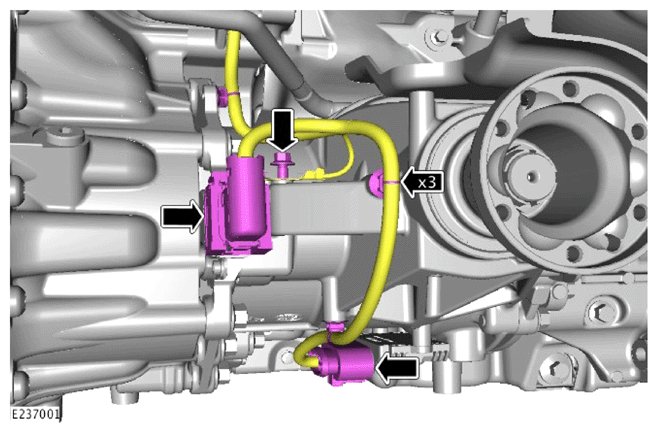

- Reposition the transmission wiring harness.
- Connect the 2 electrical connectors.
- Install the 3 wiring harness clips.
- Install and tighten the bolt.
  Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

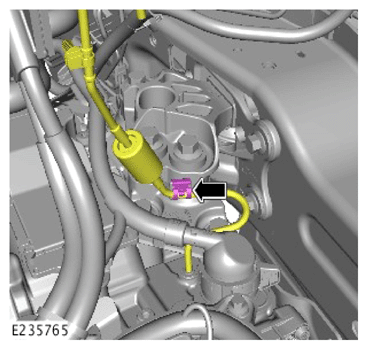

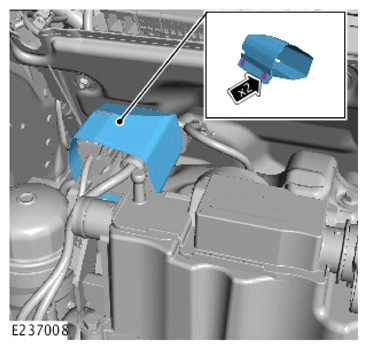

- Connect the 2 electrical connectors.
- Install the wiring harness clip.
- Install and tighten the bolt.
  Torque : 10 Nm
- Install the wiring harness connector retaining clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

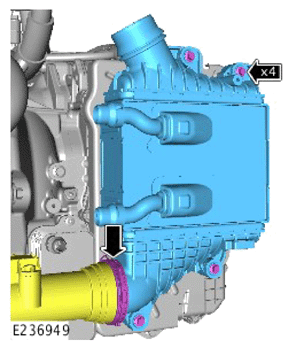

- Install the charge air cooler.
- Secure the clip.
- Install and tighten the 4 bolts.
  Torque : 7 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

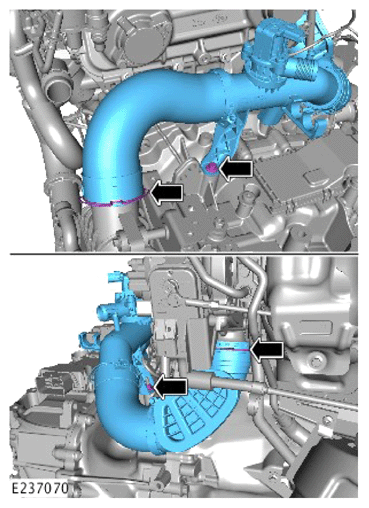

- Install the charge air cooler inlet hose assembly.
- Install and tighten the bolt.
  Torque : 8 Nm
- Install and tighten the nut.
  Torque : 8 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

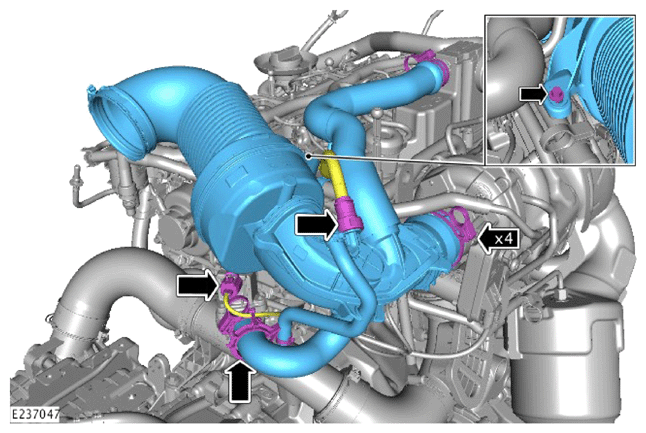

- Install the air filter outlet pipe assembly.
- Connect the 4 hoses.
- Connect the electrical connector and secure the wiring harness with the clip.
- Connect the breather pipe.
- Install the 4 hose clips.
- Install and tighten the bolt.
  Torque : 8 Nm
The following step(s) applies to:

Mild Hybrid Electric Vehicles
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

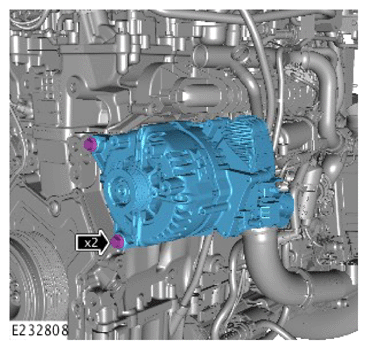

- Install the Belt Integrated Starter Generator (BISG).
- Install and tighten the 2 bolts.
  Torque : 47.5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

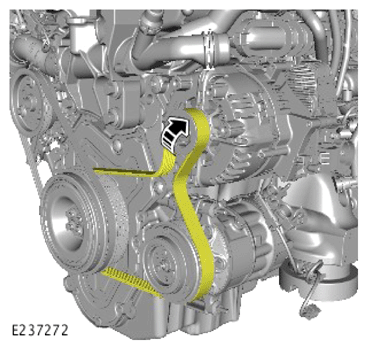

Install the accessory drive belt onto the BISG.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

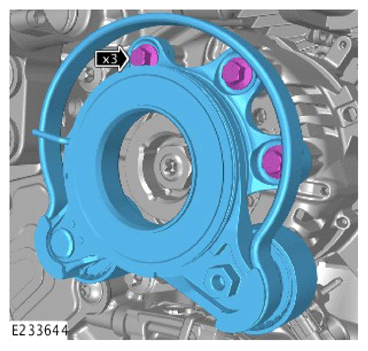

- Install the accessory drive belt tensioner.
- Install and tighten the 3 bolts.
  Torque : 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

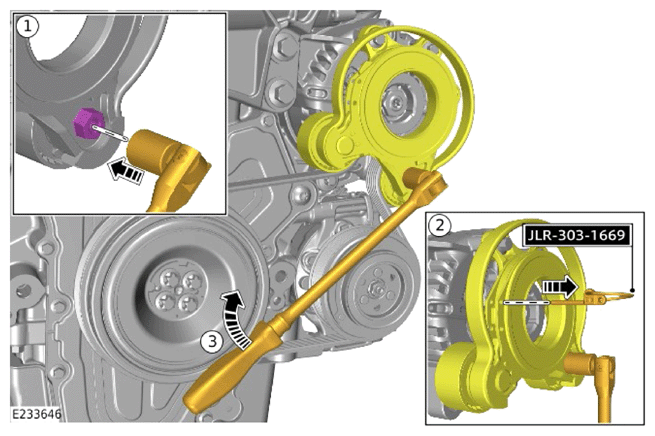

- Release the accessory drive belt tensioner.
- Remove the accessory drive belt tensioner locking tool.
  Special Tool(s): JLR-308-1699
- Carefully allow the tensioner to make contact with the accessory drive belt.
The following step(s) applies to:

All vehicles
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

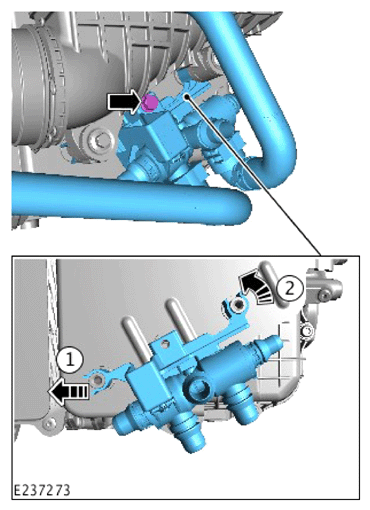

- Install the 5-way manifold.
- Install and tighten the bolt.
  Torque : 7 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

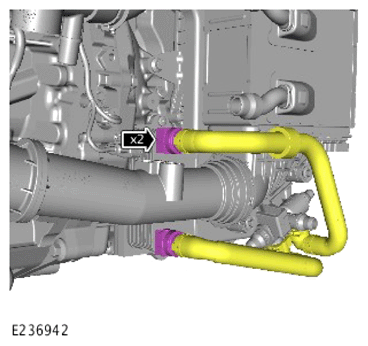

Connect the 2 coolant hoses.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

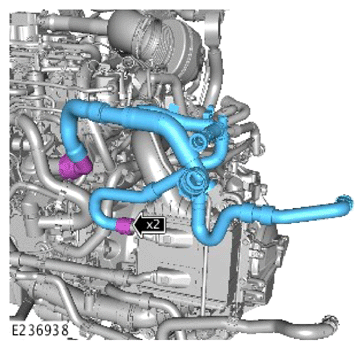

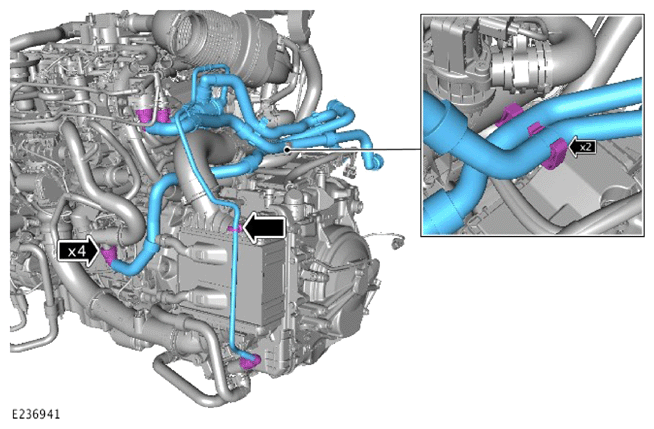

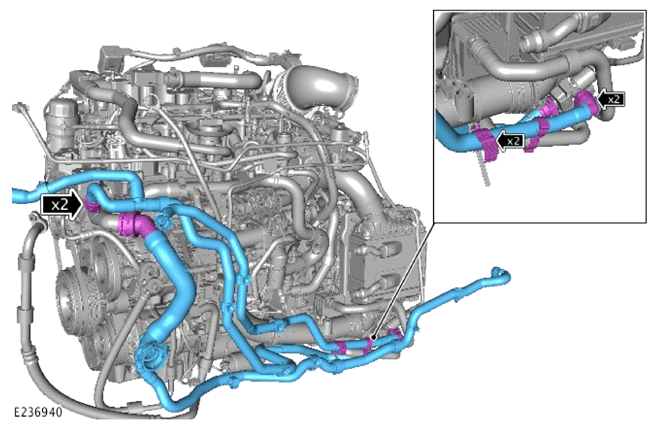

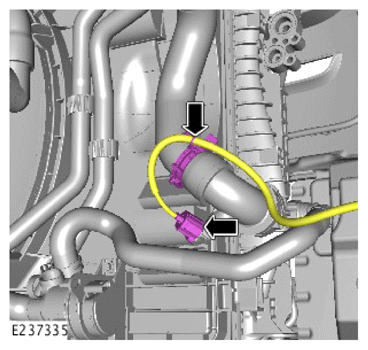

- Install the coolant hose assembly.
- Connect the 4 coolant hoses.
- Secure the coolant hose assembly with the 2 retainers.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

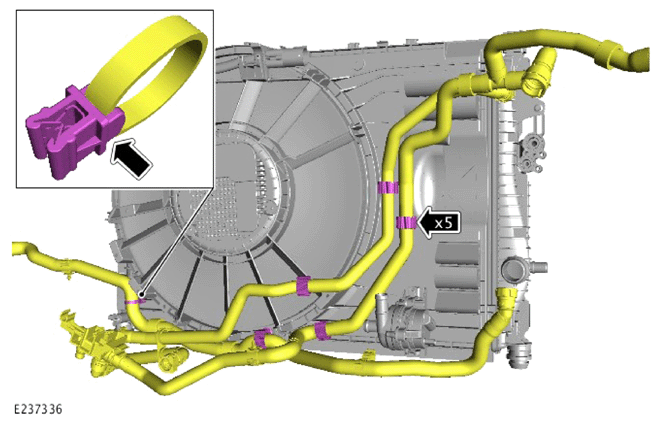

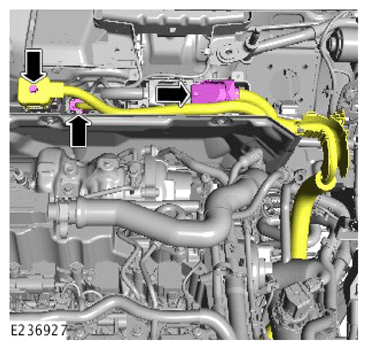

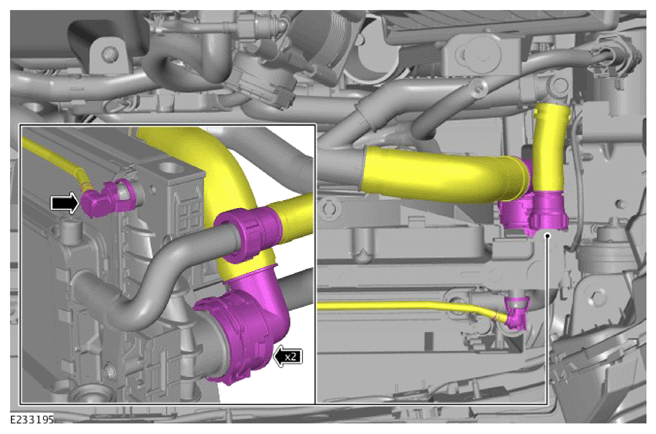

- Install the coolant hose assembly.
- Connect the 4 coolant hoses.
- Secure the coolant hose assembly with the 2 retainers.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

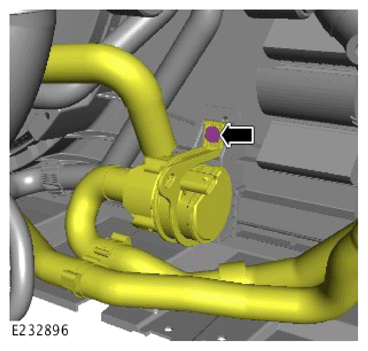

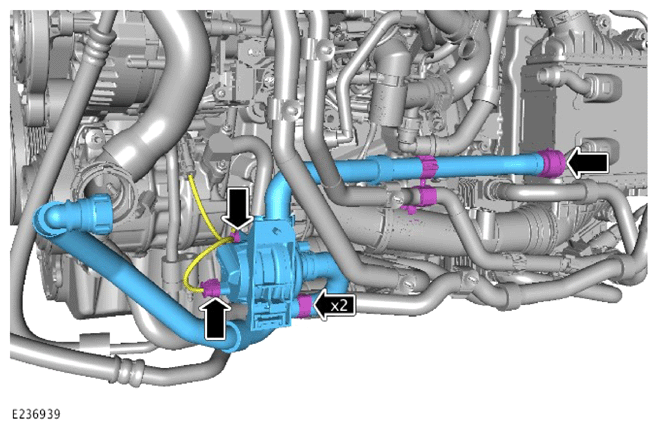

- Install the coolant hose and auxiliary coolant pump assembly.
- Connect the coolant hose.
- Install the wiring harness clip.
- Connect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

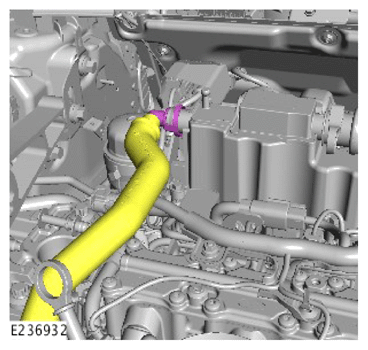

- Install the coolant hose assembly.
- Connect the 2 coolant hoses.
WARNING: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

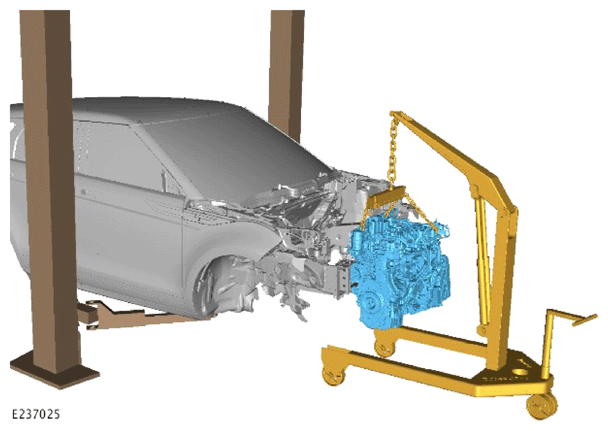

With the aid of another technician, carefully install the powertrain assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

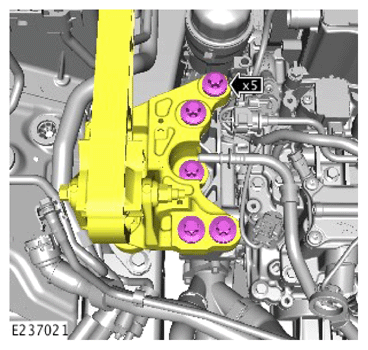

Install and tighten the 5 new bolts.

Renew Part: Engine mounting bracket to engine bolts Quantity: 5 .

Torque
1. Stage 1: 70 Nm
2. Stage 2: 120°
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and tighten the 3 new bolts.

Renew Part: Engine mounting bracket to engine bolts Quantity: 3 .

Torque
1. Stage 1: 70 Nm
2. Stage 2: 120°
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the hydraulic jib crane.
  General Equipment: Hydraulic jib crane
- Remove the 2 bolts.
- Remove the engine lifting bracket.
  Special Tool(s): JLR-303-1569
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

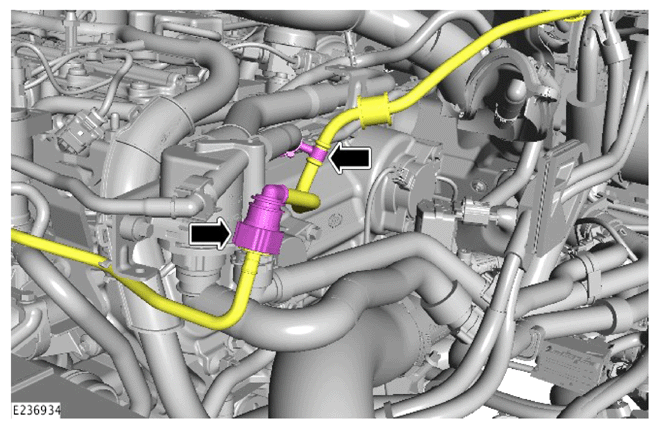

- Reposition the breather pipe.
- Install the clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

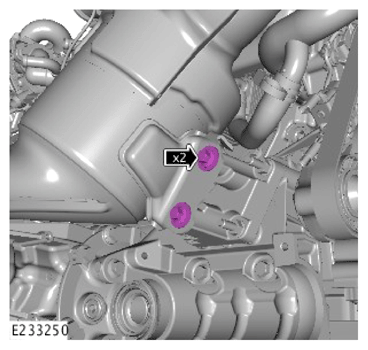

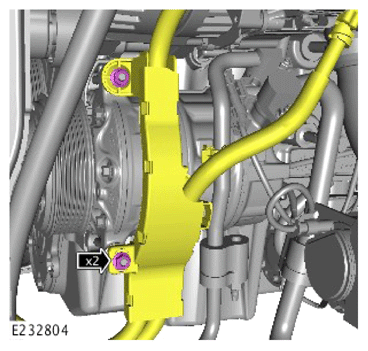

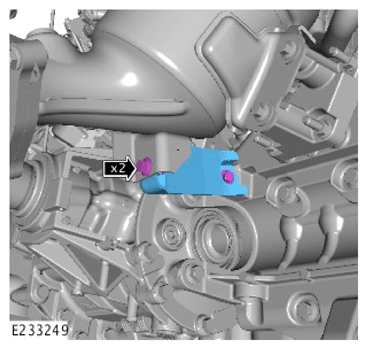

- Install the bracket.
- Install and tighten the 2 bolts.
  Torque : 15 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

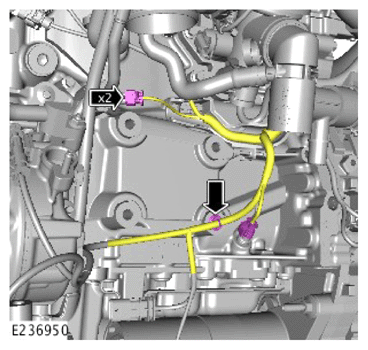

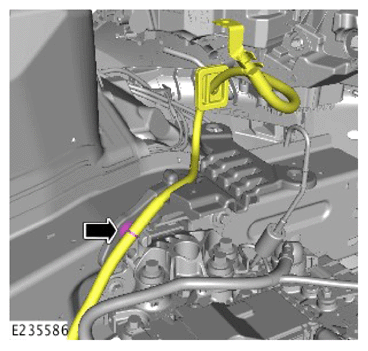

- Reposition the wiring harness.
- Install the clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

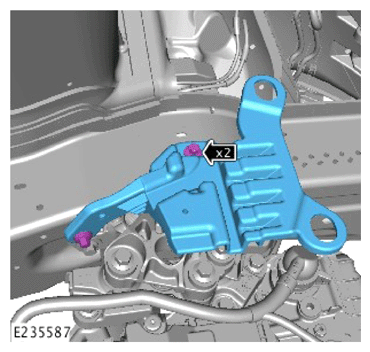

- Install the bracket.
- Install and tighten the bolt.
  Torque : 10 Nm
- Connect the 2 electrical connectors.
- Secure the 2 wiring harnesses with the 2 clips.
- Install the wiring harness clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

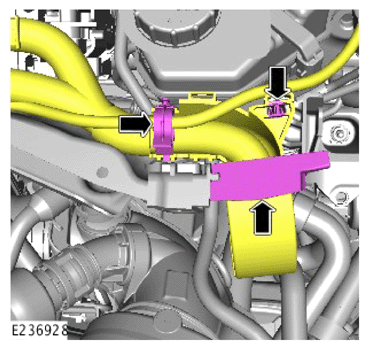

Install the heatshield and secure with the 2 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

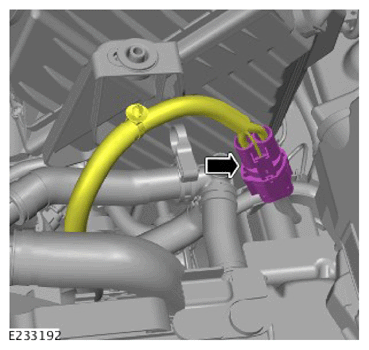

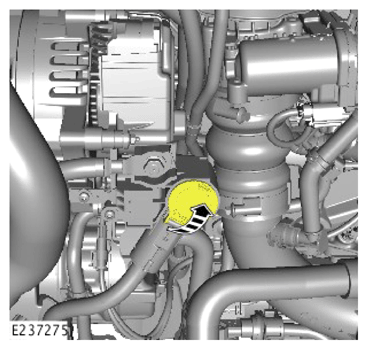

Connect the breather pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

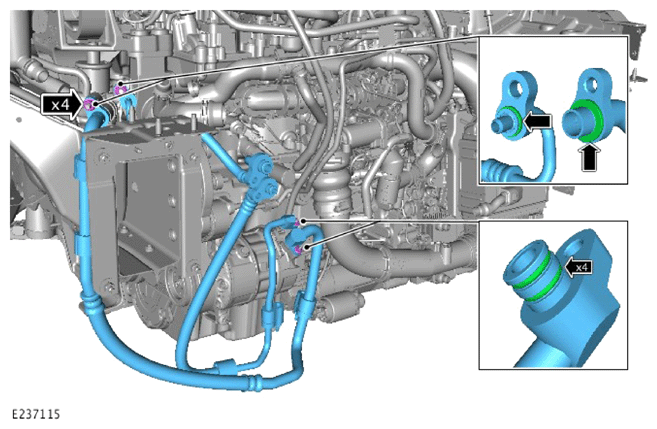

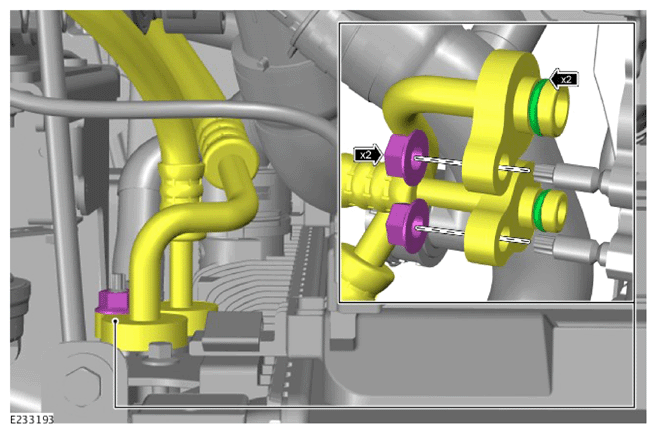

- Install 6 new O-ring seals.
  Renew Part: Air conditioning pipe O-ring seal(s) Quantity: 6 .
- Install the 2 Air Conditioning (A/C) pipes.
- Install and tighten the 4 nuts.
  Torque : 24 Nm
NOTE: Repeat this step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

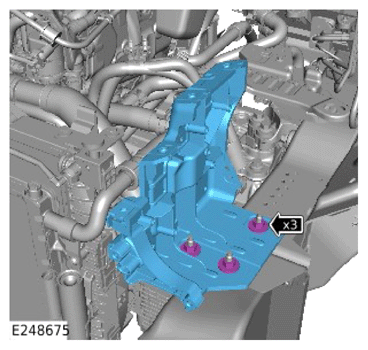

- Install the bracket.

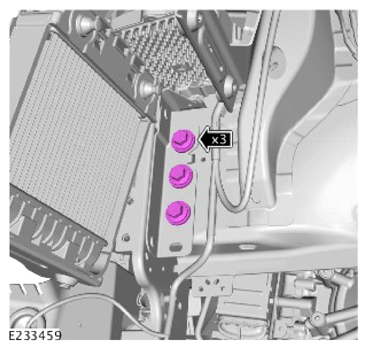

- Install and tighten the 3 nuts.
  Torque : 15 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

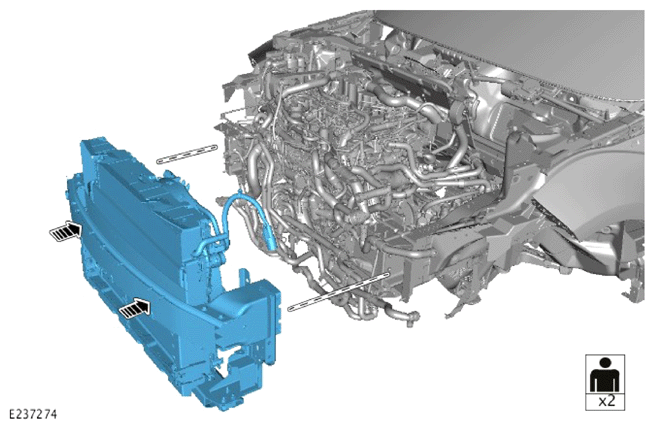

With the aid of another technician, install the cooling module assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

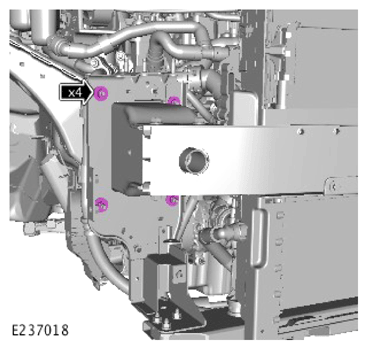

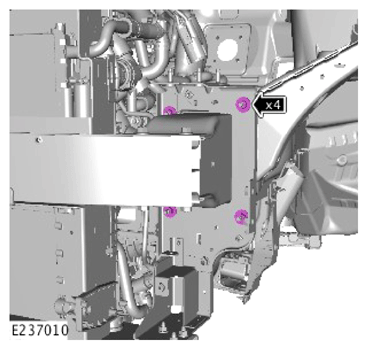

Install and tighten the 4 nuts on the left side.

Torque : 50 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and tighten the 4 nuts on the right side.

Torque : 50 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

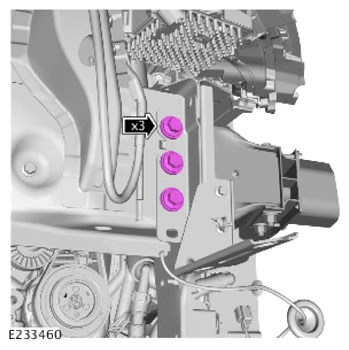

Install and tighten the 3 bolts on the left side.

Torque : 170 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and tighten the 3 bolts on the right side.

Torque : 170 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

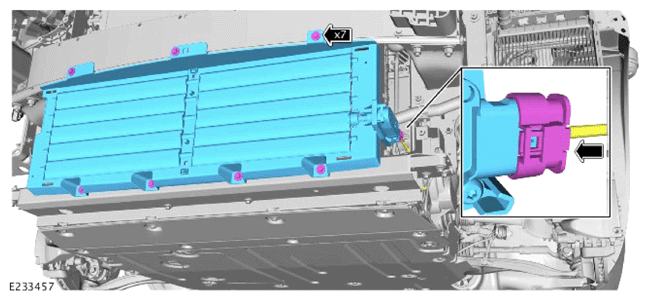

- Install the lower active grille air shutter.
- Install and tighten the 7 bolts.
  Torque : 4.1 Nm
- Connect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

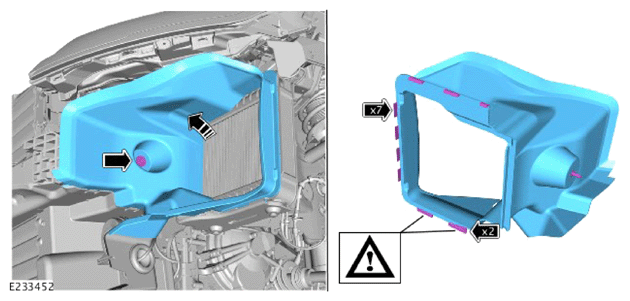

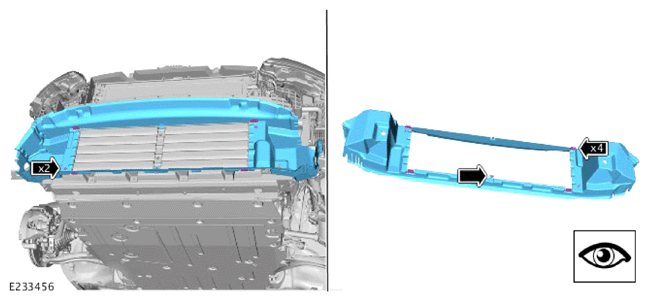

- Install the radiator lower air deflector.
- Install and tighten the 2 screws.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the 2 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

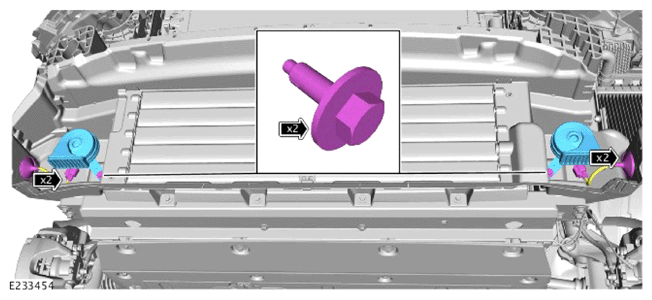

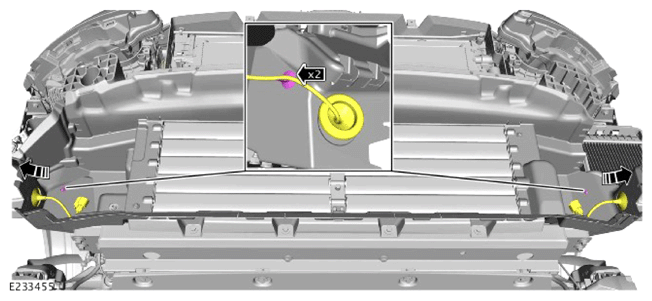

- Install the 2 horn assemblies.
- Install and tighten the 2 bolts.
  Torque : 10 Nm
- Connect the 2 electrical connectors.
- Secure the horn wiring harness on both sides.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

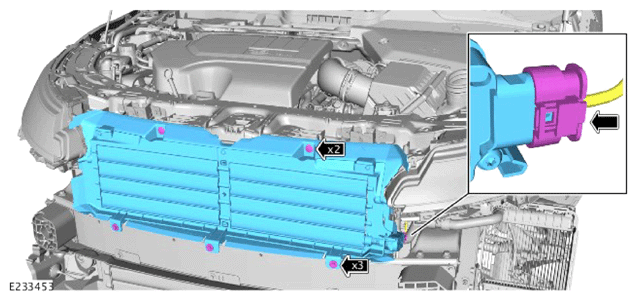

- Install the upper active grille air shutter.
- Install and tighten the 3 bolts.
  Torque : 4.1 Nm
- Install the 2 clips.
- Connect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

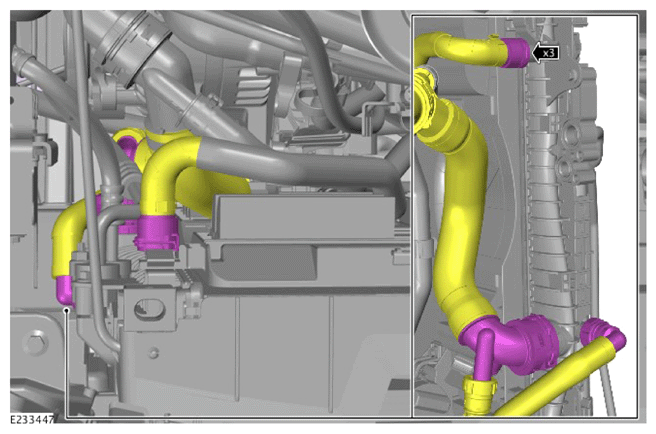

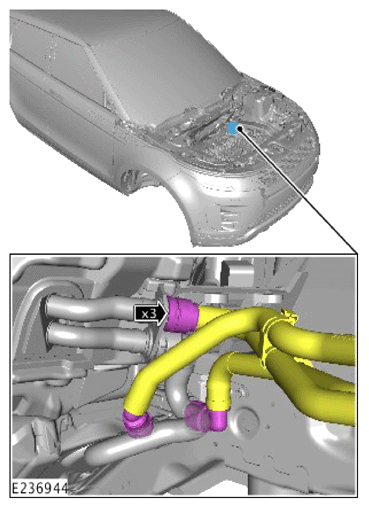

Connect the 3 left side coolant hoses.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Connect the 3 right side coolant hoses.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Connect the electrical connector.
- Secure the clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Secure the 6 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Reposition the auxiliary coolant pump.
- Install and tighten the bolt.
  Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install 2 new O-ring seals.
  Renew Part: Air conditioning pipe O-ring seal(s) Quantity: 2 .
- Connect the 2 A/C pipes.
- Install and tighten the 2 nuts.
  Torque : 24 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Connect the electrical connector.

The following step(s) applies to:

Mild Hybrid Electric Vehicles
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Reposition the wiring harness.
- Install and tighten the 2 nuts.
  Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

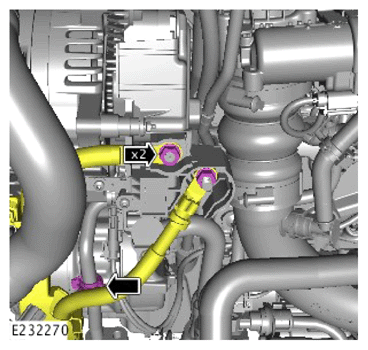

- Connect the 2 cables.
- Install the clip.
- Install and tighten the 2 nuts.
  Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Close the cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the wiring harness clip.
- Connect the electrical connector.
The following step(s) applies to:

All vehicles
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

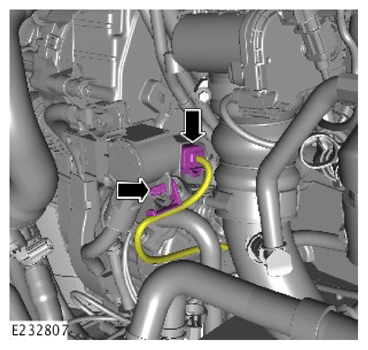

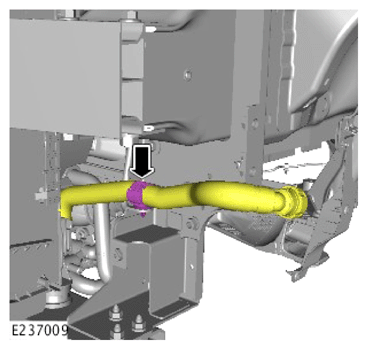

- Install the clip.
- Connect the vacuum pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Connect the 3 coolant hoses.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

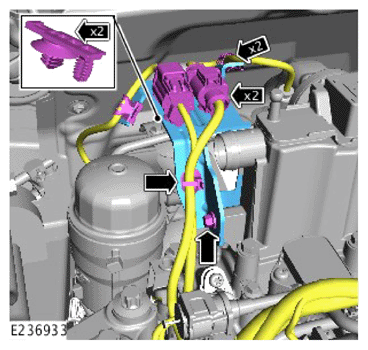

- Reposition the wiring harness.
- Install the 2 wiring harness clips.
- Install the wiring harness mounting grommet.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Connect the 3 electrical connectors.
- Install and tighten the locking bolt.
  Torque : 8 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

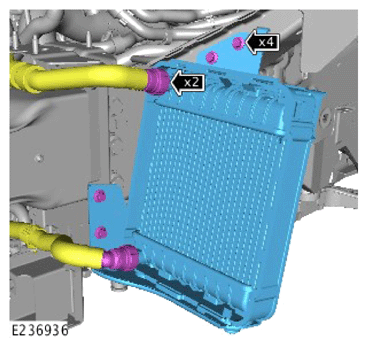

- Install the auxiliary radiator.
- Install and tighten the 4 bolts.
  Torque : 24 Nm
- Connect the 2 coolant hoses.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the auxiliary radiator duct.
- Install and tighten the bolt.
CAUTION: To avoid damage to the joint, do not allow the driveshaft to hang.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

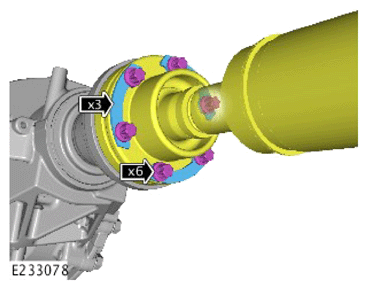

- Install the driveshaft.
- Install and tighten the 6 new bolts.
  Renew Part: Driveshaft flange bolts Quantity: 6 .

  Torque : 40 Nm
Install the cowl panel.
Refer to: COWL PANEL .
Install the coolant expansion tank.
Refer to: COOLANT EXPANSION TANK .
Install the exhaust system.
Refer to: EXHAUST SYSTEM .
Install the hood latch panel.
Refer to: HOOD LATCH PANEL .
Install the front right halfshaft.
Refer to: FRONT LEFT HALFSHAFT .
Install the front left halfshaft.
Refer to: FRONT RIGHT HALFSHAFT .
Vacuum fill the cooling system.
Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING .
Charge the A/C system.
Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING .
Install both front headlamps.
Refer to: HEADLAMP ASSEMBLY .

The following step(s) applies to:

Mild Hybrid Electric Vehicles
Power Up the Mild Hybrid Electric Vehicle (MHEV) system.
Refer to: MHEV POWER DOWN/UP .

The following step(s) applies to:

All vehicles
Install the startup battery tray.
Refer to: STARTUP BATTERY TRAY .
Install the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L PETROL .
Connect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT .
