Upper Timing Chain (G2309063): Notes

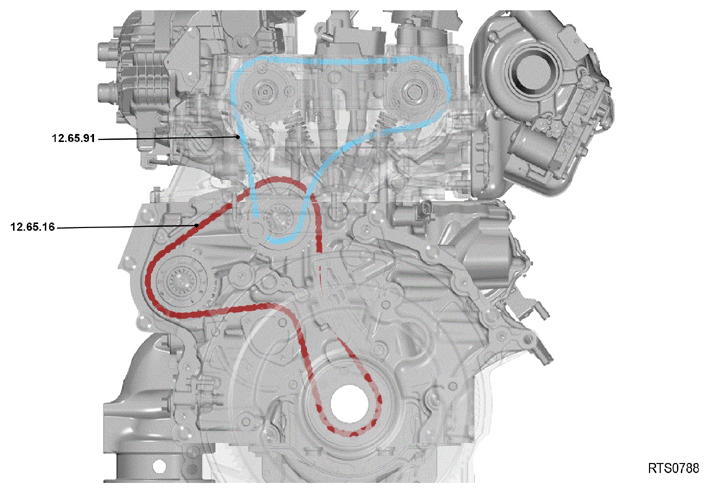

12.65.91 UPPER TIMING CHAIN - RENEW 1500 CC, INGENIUM PHEV 2.80
G14915023Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
12.65.91.32 UPPER TIMING CHAIN - MHEV - RENEW 1500 CC, INGENIUM PETROL 2.50
G14915023Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
12.67.04 UPPER TIMING CHAIN - REMOVE FOR ACCESS 2000 CC, INGENIUM DIESEL 2.00
G14281291Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
12.67.04 UPPER TIMING CHAIN - REMOVE FOR ACCESS 2000 CC, INGENIUM PETROL 3.10
G14280629Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
