Upper Timing Chain (G2309063): Installation

The following step(s) applies to:

All vehicles

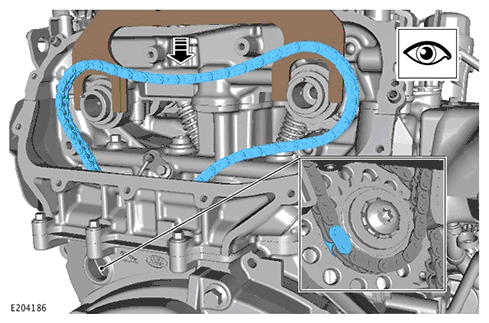

1. CAUTION:

   • Make sure that the highlighted link on the timing chain is aligned with the timing mark on the idler sprocket as illustrated.
   • Make sure that the upper timing chain does not come off the idler sprocket and stays in the correct position as illustrated.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Install the upper timing chain.
   • Check if the highlighted link on the timing chain is aligned with the timing mark on the idler sprocket as illustrated.

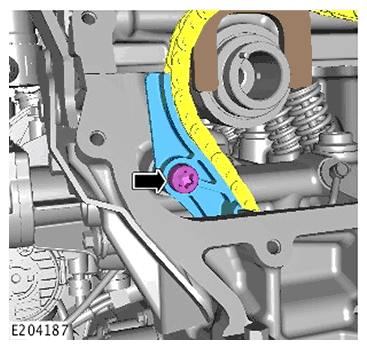

2. CAUTION: Make sure that the upper timing chain does not come off the idler sprocket and stays in the correct position.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Install a new left upper timing chain guide.

     Renew Part: Upper timing chain guide Quantity: 1 .

   • Install and tighten the new bolt.

     Renew Part: Timing chain tensioner guide bolt Quantity: 1 .

     Torque  : 25 Nm

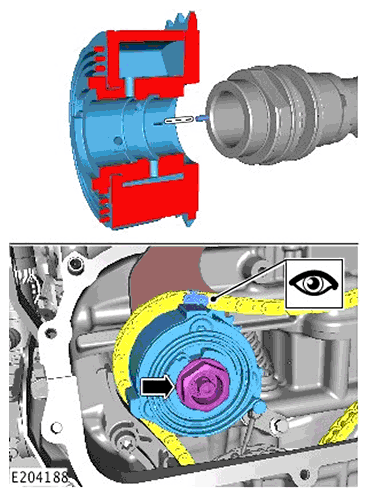

3. CAUTION: Make sure that the upper timing chain does not come off the idler sprocket and stays in the correct position.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Install the intake camshaft VCT  unit. Make sure that the correct VCT  unit is installed as noted in the removal steps.
   • Make sure that the camshaft pin is correctly seated in the VCT  unit as illustrated.
   • Install and tighten a new VCT  unit center bolt.

     Renew Part: Variable camshaft timing actuator bolts Quantity: 1 .

     Torque

     1. Stage 1: 10 Nm
     2. Stage 2: Loosen 90°
   • Check if the highlighted link on the timing chain is aligned with the timing mark on the VCT  unit as illustrated.

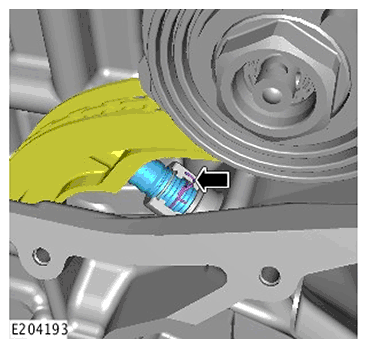

4. CAUTION: Make sure that the upper timing chain does not come off the idler sprocket and stays in the correct position.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Install a new upper timing chain tensioner arm.

   Renew Part: Timing chain tensioner arm Quantity: 1 .

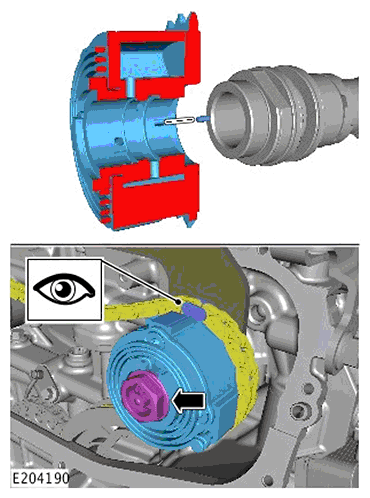

5. CAUTION: Make sure that the upper timing chain does not come off the idler sprocket and stays in the correct position.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Install the exhaust camshaft VCT  unit. Make sure that the correct VCT  unit is installed as noted in the removal steps.
   • Make sure that the camshaft pin is correctly seated in the VCT  unit as illustrated.
   • Install and tighten a new VCT  unit center bolt.

     Renew Part: Variable camshaft timing actuator bolts Quantity: 1 .

     Torque

     1. Stage 1: 10 Nm
     2. Stage 2: Loosen 90°
   • Check if the highlighted link on the timing chain is aligned with the timing mark on the VCT  unit as illustrated.

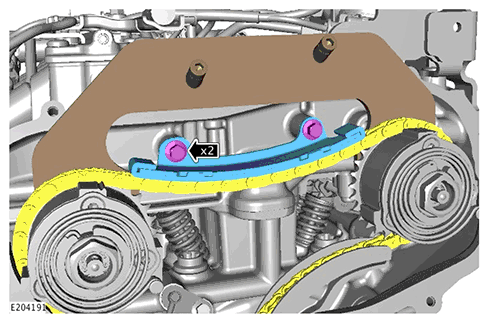

6. CAUTION: Make sure that the upper timing chain does not come off the idler sprocket and stays in the correct position.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Install a new upper timing chain guide.

     Renew Part: Upper timing chain guide Quantity: 1 .

   • Install and tighten the 2 new bolts.

     Renew Part: Upper timing chain upper guide bolt Quantity: 2 .

     Torque  : 11 Nm

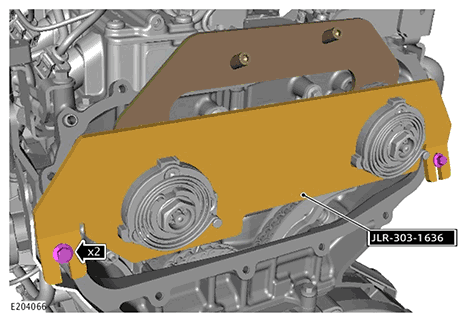

7. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Install the special tool JLR-303-1636.

     Special Tool(s): JLR-303-1636

   • Install and tighten the 2 special tool bolts.

     Torque  : 13 Nm

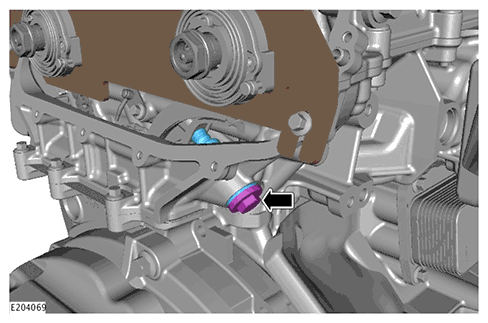

8. CAUTION: Make sure that a new upper timing chain tensioner is installed.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Install and tighten the new timing chain tensioner.

   Renew Part: Timing chain tensioner Quantity: 1 .

   Torque  : 55 Nm

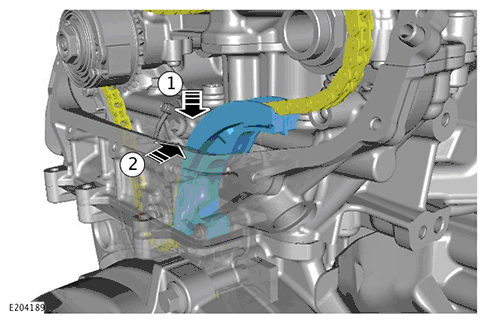

9. CAUTION:

   • Make sure that the timing chain tensioner piston is fully deployed.
   • Do not manually adjust the timing chain tensioner.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   To properly install the timing chain tensioner, push the timing chain guide against the tensioner as illustrated. This allows the tensioner to reach its final tension position.

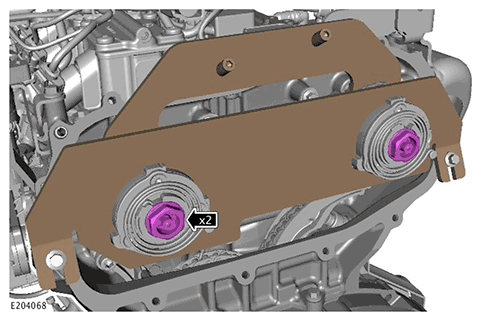

10. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Fully tighten the 2 VCT  center bolts.

    Torque

    1. Stage 1: 25 Nm
    2. Stage 2: 60°

11. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Remove the 2 special tool bolts.
    • Remove the special tool JLR-303-1636.

      Special Tool(s): JLR-303-1636

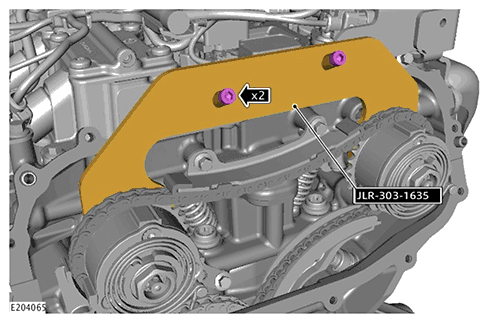

12. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    1. Remove the 2 special tool bolts.
    2. Remove the special tool JLR-303-1635.

       Special Tool(s): JLR-303-1635

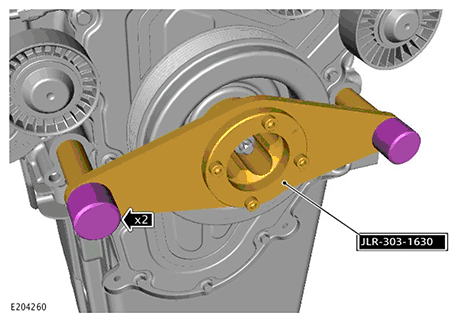

13. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the special tool JLR-303-1630.

    Special Tool(s): JLR-303-1630

    The following step(s) applies to:

    Mild Hybrid Electric Vehicles

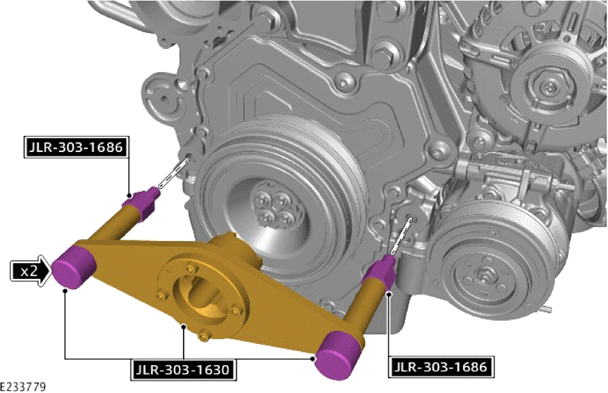

14. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the special tools JLR-303-1630 and JLR-303-1686.

    Special Tool(s): JLR-303-1630  , JLR-303-1686

15. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disassemble the special tool assembly JLR-303-1630 and JLR-303-1686.

    Special Tool(s): JLR-303-1630  , JLR-303-1686

    The following step(s) applies to:

    All vehicles

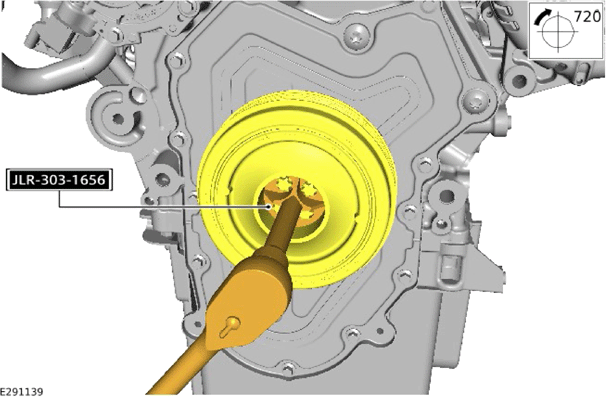

16. NOTE: This step is to make sure that the timing components are properly installed.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Use the special tool JLR-303-1656 to rotate the crankshaft 2 times clockwise.

    Special Tool(s): JLR-303-1656

17. Install the upper timing cover.

    Refer to: UPPER TIMING COVER .

18. Install the front wheel arch liner.

    Refer to: FRONT WHEEL ARCH LINER .

19. Connect the 12 V system.

    Refer to: 12V SYSTEM DISCONNECT .
