Right Powertrain Mount Bracket (G2318448): Removal

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Partially drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
Remove the powertrain upper support insulator assembly.
Refer to: POWERTRAIN UPPER SUPPORT INSULATOR .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

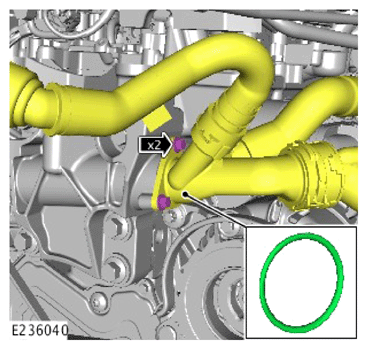

- Remove the 2 bolts.
- Disconnect the front coolant pipe from the right powertrain mount bracket.
- Remove and discard the O-ring seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

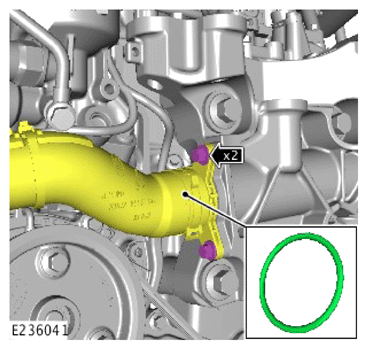

- Remove the 2 bolts.
- Disconnect the rear coolant pipe from the right powertrain mount bracket.
- Remove and discard the O-ring seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

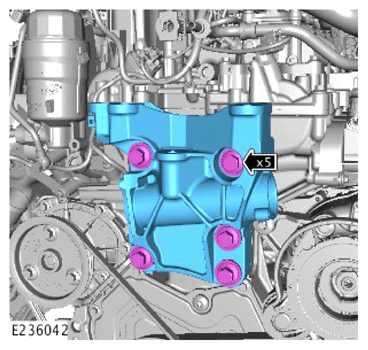

- Remove and discard the 5 bolts.
- Remove the right powertrain mount bracket.
