Right Powertrain Mount (G2318447): Removal

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the front right wheel arch liner.
Refer to: FRONT WHEEL ARCH LINER .
Remove the powertrain upper support insulator assembly.
Refer to: POWERTRAIN UPPER SUPPORT INSULATOR .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

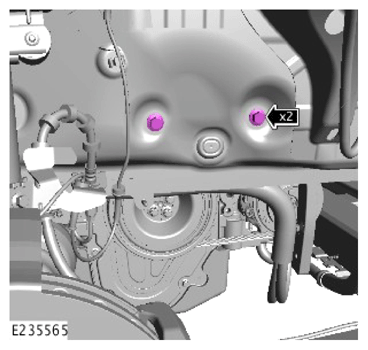

Remove and discard the 2 right powertrain mount lateral bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

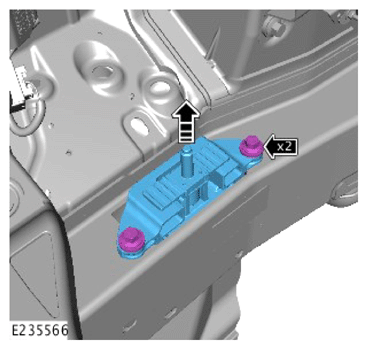

- Remove and discard the 2 right powertrain mount upper bolts.
- Remove the right powertrain mount.
